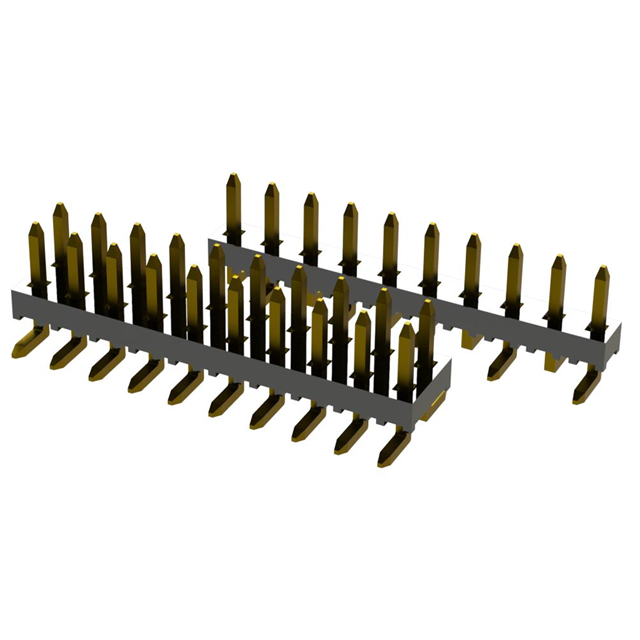

ULTSHSM-103-D-06-GT-V-TR-P-AP-LF

Active

Major League Electronics

.100 HEADER

Search across all available documentation for this part.

Active

Major League Electronics

.100 HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	ULTSHSM-103-D-06-GT-V-TR-P-AP-LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.86 mm
Contact Length - Mating	0.27 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

.100 HEADER

Part	Shrouding	Contact Shape	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Fastening Type	Number of Rows	Contact Finish - Mating	Mounting Type	Insulation Material	Contact Material	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post
Major League Electronics ULTSHSM-103-D-06-GT-V-TR-P-AP-LF	Unshrouded	Square	Header	All	3 A	Push-Pull	2	Gold	Surface Mount	Nylon 6T, Polyamide (PA6T)	Phosphor Bronze	Solder	2.54 mm	0.1 in	Black	6.86 mm	0.27 in	0.1 in	2.54 mm	0.06 in	1.52 mm	6	Male Pin	10 çin	0.25 çm	-40 °C	105 ░C	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.29

General part information

Connector Header Surface Mount 6 position 0.100" (2.54mm)
