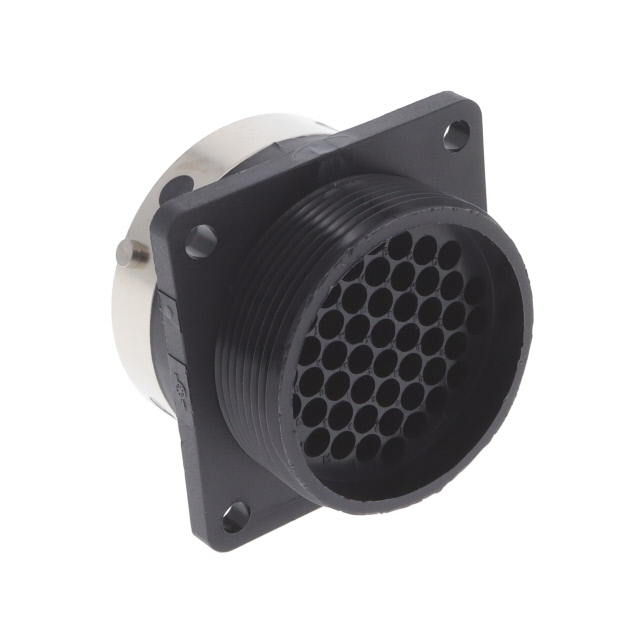

Specification	TR2448RFS1NB

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp, Solder
Fastening Type	Detent Lock
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	48
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert (Maximum)	48
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Type	For Female Sockets

TR Series

Part	Contact Type	Shell Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Type	Connector Type	Housing Color	Fastening Type	Features	Note	Material Flammability Rating	Contact Shape	Mounting Type	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Shielding	Ingress Protection IP Rating	Ingress Protection Description	Mounting Feature
ITT Cannon, LLC TR1823PFS1NB	Crimp Solder Cup	Nylon Polyamide (PA)	23	18	For Female Sockets	Plug Housing	Black	Detent Lock	Coupling Nut	Contacts Not Included	UL94 V-0	Circular	Free Hanging (In-Line)	Keyed	-55 °C	105 °C	23	Unshielded
ITT Cannon, LLC TR1823RMH1NB	Crimp Solder Solder Cup	Nylon Polyamide (PA)	23	18	For Male Pins	Receptacle Housing	Black	Detent Lock		Contacts Not Included	UL94 V-0	Circular	Panel Mount	Keyed	-55 °C	105 °C	23	Unshielded	IP65	Dust Tight Water Resistant	Flange
