IMS05ST821K
ObsoleteVishay Dale
FIXED IND 820UH 80MA 13 OHM TH
IMS05ST821K
ObsoleteVishay Dale
FIXED IND 820UH 80MA 13 OHM TH
Description
General part information
IMS05ST821K

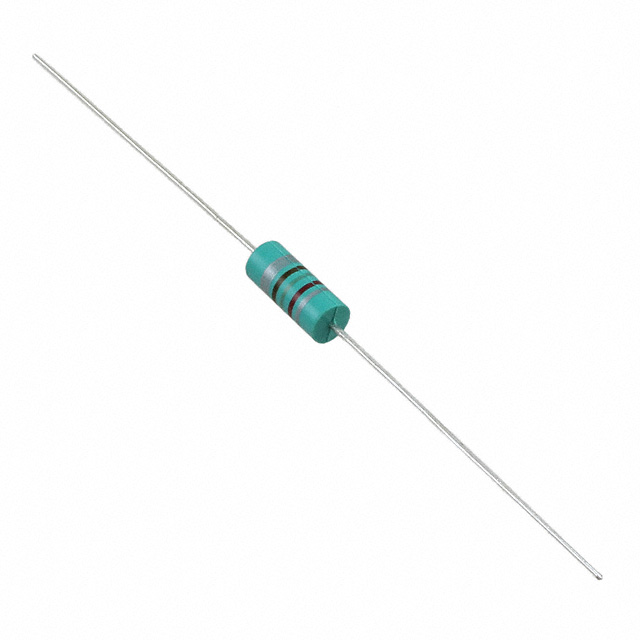

820 µH Shielded Molded Inductor 80 mA 13Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | IMS05ST821K |
|---|---|
| Current - Saturation (Isat) | 45 mA |
| Current Rating | 0.08 A |
| DC Resistance (DCR) (Max) | 13 Ohm |
| Frequency - Self Resonant | 4.2 MHz |
| Inductance | 0.82 mH |
| Inductance Frequency - Test | 790 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 60 |
| Shielding | Shielded |
| Size / Dimension Diameter | 0.162 in |
| Size / Dimension Length | 0.41 in |
| Tolerance | 10 % |
| Type | Molded |
