1719338
ActivePhoenix Contact
PCB TERMINAL BLOCK, SPT 5/ 4-V-7,5-ZB ROHS COMPLIANT: YES
1719338
ActivePhoenix Contact
PCB TERMINAL BLOCK, SPT 5/ 4-V-7,5-ZB ROHS COMPLIANT: YES
Description
General part information
1719338

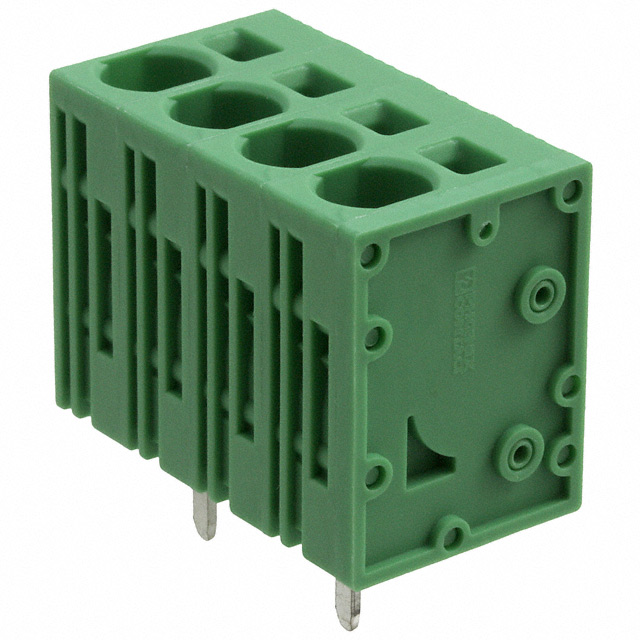

4 Position Wire to Board Terminal Block Vertical with Board 0.295" (7.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1719338 |
|---|---|
| Color | Green |
| Current | 35 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.295 in |
| Positions Per Level | 4 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
