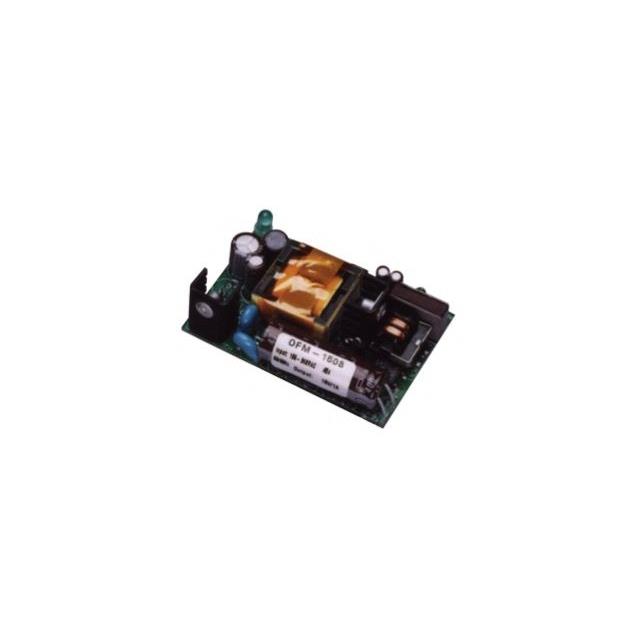

OFM-1501
ActiveAstrodyne TDI
AC/DC CONVERTER 5V 15W
OFM-1501
ActiveAstrodyne TDI
AC/DC CONVERTER 5V 15W
Description
General part information
OFM-1501
Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | OFM-1501 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output 1 | 3 A |
| Efficiency | 78 % |
| Features | Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 15 W |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
