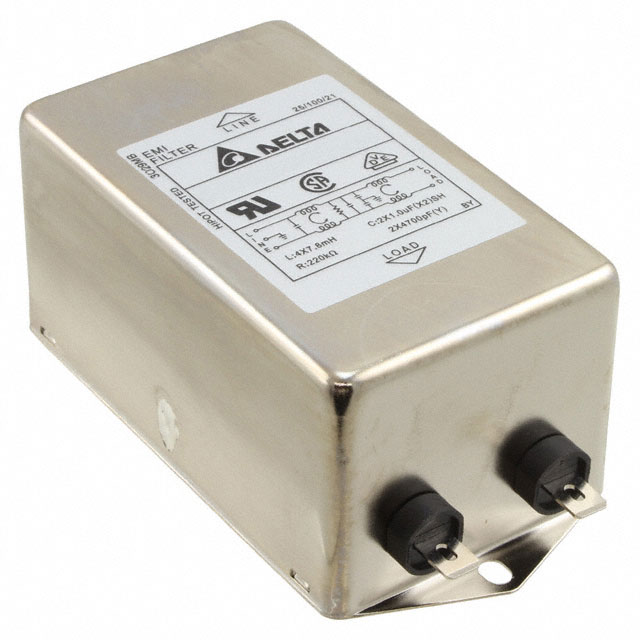

06DPCG5B
ActiveDelta Electronics
LINE FILTER 115V/250VAC 6A CHAS
06DPCG5B
ActiveDelta Electronics
LINE FILTER 115V/250VAC 6A CHAS
Description
General part information
06DPCG5B
Single Phase EMC/EMI Line Filter 6 A 115V, 250V 50/60Hz Two Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 06DPCG5B |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CSA, VDE |
| Configuration | Two Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250V, 115V |
