PIC18LF25K40-I/SO

Active

32KB FLASH, 2KB RAM, 256B EEPROM, 10B ADC2, 5B DAC, COMP, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DO

Find alt

Alpha

PIC18LF25K40-I/SO

Active

Microchip Technology

32KB FLASH, 2KB RAM, 256B EEPROM, 10B ADC2, 5B DAC, COMP, PWM, CCP, CWG, HLT, WWDT, SCAN/CRC, ZCD, PPS, EUSART, SPI/I2C, IDLE/DO

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC18LF25 Series

PIC18(L)FxxK42 MCUs integrate a rich set of core independent peripherals, intelligent analog peripherals and large Flash/RAM/EEPROM memories. These 28-, 40- and 48-pin devices also offer a host of low power features, performance improvements and design flexibility options that easily and rapidly enable the complex set of functions required by many of today's embedded control applications.

Functional Safety:

This product is recommended for safety critical applications targeting both industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation such as FMEDA report and Safety Manual can be provided on request. Certified development tools are also available for this product. Please contact your local Microchip sales office or your distributor for more information.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC18LF25K40-I/SO

A/D Channels	35 count
A/D Resolution (bits)	10 bit
Connectivity	I2C, LINbus, UART, SPI, USART
Core Processor	PIC
Core Size (Bit Width)	8 Bit
D/A Channels	1 count
D/A Resolution (bits)	5 bit
EEPROM Size (Depth)	256
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	25
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.295 in
Package Name	28-SOIC
Package Width	7.5 mm
Peripherals	Reset, LVD, Brown-out Detect, WDT, POR, PWM
Program Memory Depth	16 K
Program Memory Size	32 KB
Program Memory Type	FLASH
Program Memory Width	16
RAM Size Depth	2 K
RAM Size Width	8 bit
Speed	64 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.8 V

PIC18LF25 Series

...

Part	Core Processor	Package Width	Package Name	Package Length	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Program Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	A/D Resolution (bits)	A/D Channels	Core Size (Bit Width)	Peripherals	Connectivity	Number of I/O	RAM Size Depth	RAM Size Width	Oscillator Type	Mounting Type	Program Memory Width	Program Memory Size	Program Memory Depth	Speed	Package / Case	EEPROM Size (Width)	EEPROM Size (Depth)	D/A Channels	D/A Resolution (bits)
Microchip Technology PIC18LF25J11-I/SS	PIC	5.3 mm	28-SSOP	0.209 in	3.6 V	2 V	FLASH	85 °C	-40 °C	10 bit	10 count	8 Bit	Brown-out Detect POR PWM Reset WDT	I2C SPI UART USART	16	3.8 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	48 MHz
Microchip Technology PIC18LF25K42-E/ML	PIC	6 mm	28-QFN	6 mm	3.6 V	1.8 V	FLASH	125 °C	-40 °C	12 bit	24 count	8 Bit	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C LINbus SPI UART USART	25	2 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz	28-VQFN Exposed Pad	8 bit	256	1 count	5 bit
Microchip Technology PIC18LF25J10-I/SO	PIC	7.5 mm	28-SOIC	0.295 in	3.6 V	2 V	FLASH	85 °C	-40 °C	10 bit	10 count	8 Bit	Brown-out Detect POR PWM Reset WDT	I2C SPI UART USART	21	1 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	40 MHz
Microchip Technology PIC18LF25K42-I/ML	PIC	6 mm	28-QFN	6 mm	3.6 V	1.8 V	FLASH	85 °C	-40 °C	12 bit	24 count	8 Bit	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C LINbus SPI UART USART	25	2 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz	28-VQFN Exposed Pad	8 bit	256	1 count	5 bit
Microchip Technology PIC18LF25K83-I/SS	PIC	5.3 mm	28-SSOP	0.209 in	3.6 V	1.8 V	FLASH	85 °C	-40 °C	12 bit	24 count	8 Bit	Brown-out Detect DMA POR PWM Reset WDT	CANbus I2C LINbus SPI UART USART	25	2 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz		8 bit	1 K	1 count	5 bit
Microchip Technology PIC18LF25J11-I/SO	PIC	7.5 mm	28-SOIC	0.295 in	3.6 V	2 V	FLASH	85 °C	-40 °C	10 bit	10 count	8 Bit	Brown-out Detect POR PWM Reset WDT	I2C SPI UART USART	16	3.8 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	48 MHz

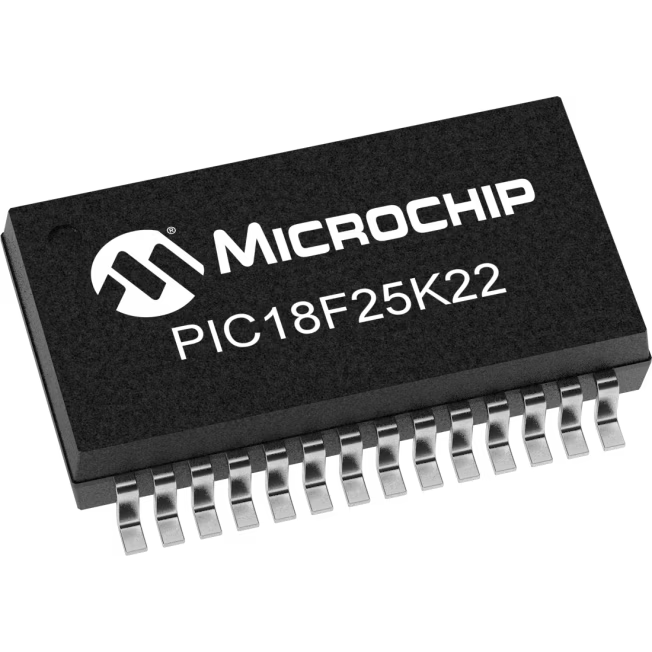

Microchip Technology PIC18LF25K22T-I/SS	PIC	5.3 mm	28-SSOP	0.209 in	3.6 V	1.8 V	FLASH	85 °C	-40 °C	10 bit	19 count	8 Bit	Brown-out Detect HLVD POR PWM Reset WDT	I2C SPI UART USART	24	1.5 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz		8 bit	256
Microchip Technology PIC18LF25K42-I/SO	PIC	7.5 mm	28-SOIC	0.295 in	3.6 V	1.8 V	FLASH	85 °C	-40 °C	12 bit	24 count	8 Bit	Brown-out Detect DMA HLVD POR PWM Reset WDT	I2C LINbus SPI UART USART	25	2 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz		8 bit	256	1 count	5 bit
Microchip Technology PIC18LF25K83-I/MX	PIC	6 mm	28-UQFN	6 mm	3.6 V	1.8 V	FLASH	85 °C	-40 °C	12 bit	24 count	8 Bit	Brown-out Detect DMA POR PWM Reset WDT	CANbus I2C LINbus SPI UART USART	25	2 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz	28-UQFN Exposed Pad	8 bit	1 K	1 count	5 bit
Microchip Technology PIC18LF25K83T-I/SO	PIC	7.5 mm	28-SOIC	0.295 in	3.6 V	1.8 V	FLASH	85 °C	-40 °C	12 bit	24 count	8 Bit	Brown-out Detect DMA POR PWM Reset WDT	CANbus I2C LINbus SPI UART USART	25	2 K	8 bit	Internal	Surface Mount	16	32 KB	16 K	64 MHz		8 bit	1 K	1 count	5 bit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PIC18LF25K40-I/SO | Datasheet

Product Change Notice EN
