787653-3

Obsolete

TE Connectivity AMP Connectors

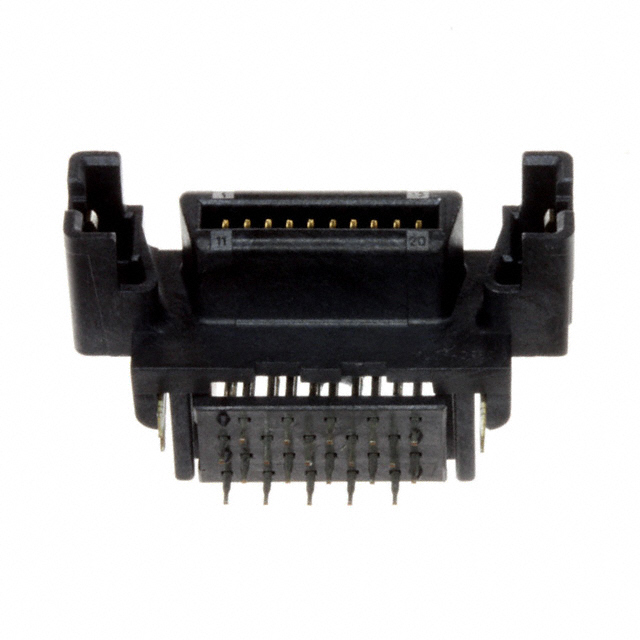

CONN BTB SCA-2 RCPT 20P R/A SLDR

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN BTB SCA-2 RCPT 20P R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787653-3	787653 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	-	Board Lock, Latch Lock
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	20	20
Number of Rows	2	2
Termination	Solder	Solder
Type	Board to Board, SCA-2	Board to Board, Board to Board, SCA-2

CONN BTB RCPT 20POS R/A SOLDER

Part	Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Number of Rows	Contact Finish	Features	Connector Style	Number of Positions
TE Connectivity AMP Connectors 787653-1	Board to Board	Receptacle	0.76 Ám	30 Áin	Solder	Through Hole, Right Angle	2	Gold	Board Lock, Latch Lock	Outer Shroud Contacts	20
TE Connectivity AMP Connectors 787653-3	Board to Board, SCA-2	Receptacle	0.76 Ám	30 Áin	Solder	Through Hole, Right Angle	2	Gold		Outer Shroud Contacts	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Receptacle Connector Board to Board, SCA-2 Through Hole, Right Angle Solder
