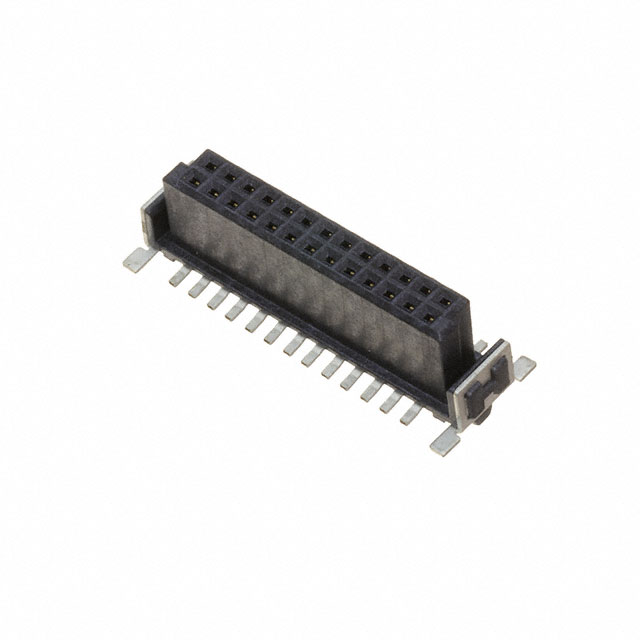

XH5B-2615-4N
ActiveOmron Electronics Inc-EMC Div
SOCKET, STRAIGHT, SMT PINS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XH5B-2615-4N
ActiveOmron Electronics Inc-EMC Div
SOCKET, STRAIGHT, SMT PINS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XH5B-2615-4N | XH5B Series |
|---|---|---|
| Connector Type | Socket | Socket |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Pick and Place, Board Guide, Solder Retention | Pick and Place, Board Guide, Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 0.246 in | 0.246 in |
| Insulation Height | 6.25 mm | 6.25 mm |
| Insulation Height | - | 0.356 in |
| Insulation Height | - | 9.05 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 8 mm, 9.5 mm | 8 - 12.3 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 26 | 12 - 26 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 100 VAC | 100 VAC |
XH5B Series
SOCKET, STRAIGHT, SMT PINS
| Part | Mated Stacking Heights | Material Flammability Rating | Style | Insulation Color | Fastening Type | Number of Positions Loaded | Voltage Rating | Contact Material | Mounting Type | Features | Insulation Height | Insulation Height | Number of Rows | Contact Finish - Post | Number of Positions | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Termination | Contact Shape | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div XH5B-2615-4N | 8 mm, 9.5 mm | UL94 V-0 | Board to Board, Cable | Black | Push-Pull | All | 100 VAC | Copper Alloy | Surface Mount | Board Guide, Pick and Place, Solder Retention | 0.246 in | 6.25 mm | 2 | Tin | 26 | Socket | 0.05 in | 1.27 mm | Gold | 105 ░C | -55 °C | Female Socket | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Solder | Square | ||
Omron Electronics Inc-EMC Div XH5B-1215-5N | 10.8 mm, 12.3 mm | UL94 V-0 | Board to Board, Cable | Black | Push-Pull | All | 100 VAC | Copper Alloy | Surface Mount | Board Guide, Pick and Place, Solder Retention | 2 | Tin | 12 | Socket | 0.05 in | 1.27 mm | Gold | 105 ░C | -55 °C | Female Socket | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Solder | Square | 0.356 in | 9.05 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.34 | |
| 10 | $ 5.73 | |||
| 25 | $ 5.41 | |||
| 50 | $ 5.28 | |||
| 100 | $ 5.02 | |||
| Digi-Reel® | 1 | $ 6.34 | ||
| 10 | $ 5.73 | |||
| 25 | $ 5.41 | |||
| 50 | $ 5.28 | |||
| 100 | $ 5.02 | |||
| Tape & Reel (TR) | 280 | $ 4.04 | ||
| 560 | $ 3.77 | |||
| 840 | $ 3.62 | |||
| 1400 | $ 3.45 | |||
| 1960 | $ 3.34 | |||
| 2800 | $ 3.27 | |||
Description
General part information
XH5B Series
26 Position Socket Connector 0.050" (1.27mm) Surface Mount Gold
