Technical Specifications
Parameters and characteristics for this part
| Specification | 1-87756-2 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
87756 Series
| Part | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 0.76 Ám | 30 Áin |
 TE Connectivity Raychem Cable Protection | Socket | Tin | 22 AWG | 26 AWG | Crimp | 1.27 µm | 50 µin |
TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 1.27 µm | 50 µin |
TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 0.38 µm | 15 µin |
TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 0.76 Ám | 30 Áin |
TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 0.38 µm | 15 µin |
TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 0.38 µm | 15 µin |
 TE Connectivity Raychem Cable Protection | Socket | Gold | 22 AWG | 26 AWG | Crimp | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
87756 Series

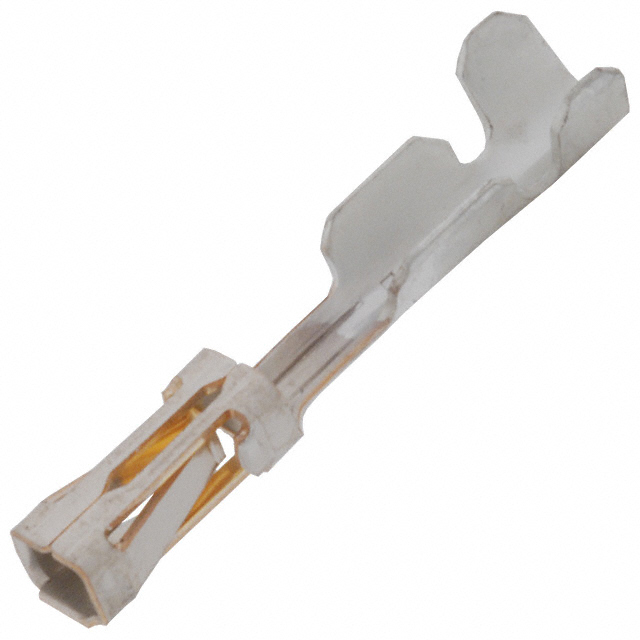

Socket Contact Gold 22-26 AWG Crimp
