AMI-22B-1-1

Active

Altran Magnetics, LLC

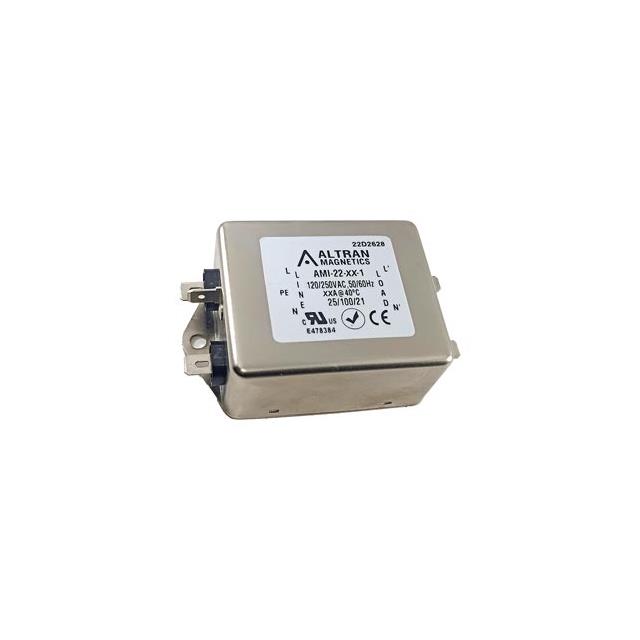

LINE FILTER 250VAC 1A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-22B-1-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 1A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMI-22B-1-1	AMI-22B Series

Applications	Medical	Medical
Approval Agency	CE, cURus	CE, cURus
Configuration	Single Stage	Single Stage
Current	1 A	1 - 60 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	-	1 - 800 µH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect, Threaded Post (M4), Wire Leads
Voltage - Rated AC	250 V	250 V

AMI-22B Series

GENERAL EMI FILTER WITH HIGH ATTENUATION PERFORMANCE

Part	Mounting Type	Voltage - Rated AC	Configuration	Applications	Termination Style	Current	Operating Temperature [custom]	Filter Type	Frequency - Operating	Inductance	Approval Agency
Altran Magnetics, LLC AMI-22B-10-3	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	10 A	-25 °C, 100 °C	Single Phase	400 Hz	800 µH	CE, cURus
Altran Magnetics, LLC AMI-22B-20-6	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	20 A	-25 °C, 100 °C	Single Phase	400 Hz	600 µH	CE, cURus
Altran Magnetics, LLC AMI-22B-3-3	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	3 A	-25 °C, 100 °C	Single Phase	400 Hz	670 µH	CE, cURus
Altran Magnetics, LLC AMI-22B-6-3	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	6 A	-25 °C, 100 °C	Single Phase	400 Hz	1 mH	CE, cURus
Altran Magnetics, LLC AMI-22B-60-6A	Chassis Mount	250 V	Single Stage	Medical	Threaded Post (M4)	60 A	-25 °C, 100 °C	Single Phase	400 Hz	1 mH	CE, cURus
Altran Magnetics, LLC AMI-22B-20-1	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	20 A	-25 °C, 100 °C	Single Phase	400 Hz	600 µH	CE, cURus
Altran Magnetics, LLC AMI-22B-1-3	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	1 A	-25 °C, 100 °C	Single Phase	400 Hz	12 mH	CE, cURus
Altran Magnetics, LLC AMI-22B-20-3	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	20 A	-25 °C, 100 °C	Single Phase	400 Hz	600 µH	CE, cURus
Altran Magnetics, LLC AMI-22B-10-1	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	10 A	-25 °C, 100 °C	Single Phase	400 Hz	800 µH	CE, cURus
Altran Magnetics, LLC AMI-22B-12-3	Chassis Mount	250 V	Single Stage	Medical	Quick Connect	12 A	-25 °C, 100 °C	Single Phase	400 Hz	700 µH	CE, cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.54
		10	$ 12.68
		25	$ 11.69
		50	$ 10.99
		100	$ 10.34

Description

General part information

AMI-22B Series

Single Phase EMC/EMI Line Filter 1 A 250V DC ~ 400Hz Single Stage Quick Connect
