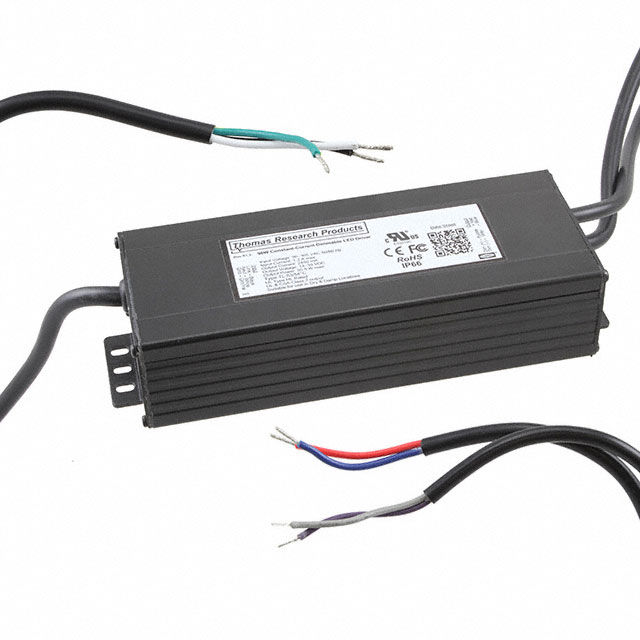

PLED96W-092-C1050-D

Active

Thomas Research Products

LED DRIVER CC AC/DC 31-92V 1.05A

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CC AC/DC 31-92V 1.05A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLED96W-092-C1050-D	PLED96W Series

Approval Agency	cULus, CE	cULus, CE
Current - Output (Max)	-	2.8 A
Current - Output (Max) [Max]	1.05 A	1.05 - 3.15 A
Dimming	Analog	Analog
Efficiency	91 %	89 - 91 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	96 W	96 W
Ratings	NEMA 6, IP66	NEMA 6, IP66
Size / Dimension [x]	5.98 "	5.98 "
Size / Dimension [x]	152 mm	152 mm
Size / Dimension [y]	2.31 "	2.31 "
Size / Dimension [y]	58.8 mm	58.8 mm
Size / Dimension [z]	37 mm	37 mm
Size / Dimension [z]	1.46 "	1.46 "
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Voltage, Constant Current
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	90 VAC	90 VAC
Voltage - Output	-	34 V
Voltage - Output [Max]	92 V	30 - 92 VDC
Voltage - Output [Min]	31 V	10 - 31 V
Weight	1.4 lbs	1.4 lbs
Weight	635 g	635 g

LED DRIVER CV AC/DC 34V 2.8A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Weight	Weight	Ratings	Features	Efficiency	Topology	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Voltage - Input (Max) [Max]	Termination Style	Voltage - Output	Current - Output (Max)	Type	Voltage - Input (Min) [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output (Max) [Max]	Dimming
Thomas Research Products PLED96W-034	65 °C	-30 ░C	Chassis Mount	1	1.4 lbs	635 g	IP66, NEMA 6	OCP, OVP, SCP	89 %	AC DC Converter	96 W	37 mm	2.31 "	5.98 "	58.8 mm	1.46 "	152 mm	CE, cULus	305 VAC	Wire Leads	34 V	2.8 A	Constant Voltage	90 VAC
Thomas Research Products PLED96W-030-C3150	65 °C	-30 ░C	Chassis Mount	1	1.4 lbs	635 g	IP66, NEMA 6	OCP, OVP, SCP	89 %	AC DC Converter	96 W	37 mm	2.31 "	5.98 "	58.8 mm	1.46 "	152 mm	CE, cULus	305 VAC	Wire Leads			Constant Current	90 VAC	10 V	30 VDC	3.15 A
Thomas Research Products PLED96W-092-C1050-D	65 °C	-30 ░C	Chassis Mount	1	1.4 lbs	635 g	IP66, NEMA 6	OCP, OVP, SCP	91 %	AC DC Converter	96 W	37 mm	2.31 "	5.98 "	58.8 mm	1.46 "	152 mm	CE, cULus	305 VAC	Wire Leads			Constant Current	90 VAC	31 V	92 V	1.05 A	Analog

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 107.99

General part information

1.05A 31 ~ 92V Constant Current LED Driver AC DC Converter Topology 1 Output
