Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1845205 | DMCV Series |
|---|---|---|
| Color | Black | Black |
| Contact Mating Finish | Gold | Gold, Tin |
| Contact Tail Length | - | 0.079 in |
| Contact Tail Length | - | 2 mm |
| Current - IEC | 6 A | 6 - 8 A |
| Current - UL | 6 A | 6 - 8 A |
| Features | Solder Retention | Solder Retention, Mating and Mounting Flange |
| Header Orientation | Vertical | Vertical |
| Housing Material | - | Liquid Crystal Polymer (LCP) |
| Insulation Height | - | 10 mm |
| Insulation Height | - | 0.394 " |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of Levels | 2 | 2 |
| Number of Positions | 10 | 8 - 10 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 2.54 - 3.5 mm |
| Pitch [x] | 0.1 in | 0.1 - 0.138 in |
| Positions Per Level | 5 | 4 - 8 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 160 V | 160 - 250 V |
| Voltage - UL | 150 V | 150 V |
DMCV Series
Pluggable Terminal Blocks 8 Pos 3.5mm Dbl Row Through Hole Header
| Part | Features | Header Orientation | Current - IEC | Voltage - IEC | Type | Positions Per Level | Contact Mating Finish | Voltage - UL | Color | Number of Positions | Pitch [x] | Pitch [x] | Termination Style | Number of Levels | Mounting Type | Current - UL | Material Flammability Rating | Number of Positions | Housing Material | Contact Tail Length | Contact Tail Length | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

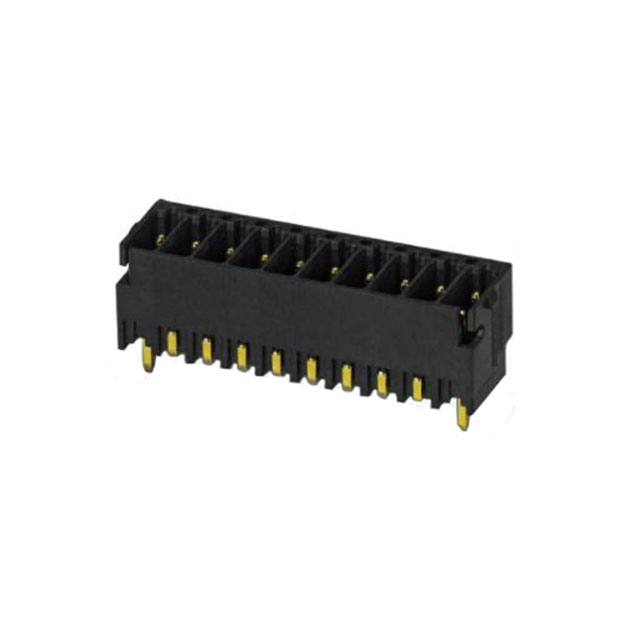

Phoenix Contact 1845205 | Solder Retention | Vertical | 6 A | 160 V | Header, Male Pins, Shrouded (4 Side) | 5 | Gold | 150 V | Black | 10 | 2.54 mm | 0.1 in | Solder | 2 | Surface Mount | 6 A | |||||||
Phoenix Contact 1787263 | Vertical | 8 A | 250 V | Header, Male Pins, Shrouded (4 Side) | 8 | Tin | 150 V | Black | 3.5 mm | 0.138 in | Solder | 2 | Through Hole | 8 A | UL94 V-0 | 16 | Liquid Crystal Polymer (LCP) | 0.079 in | 2 mm | 10 mm | 0.394 " | ||
Phoenix Contact 1787412 | Mating and Mounting Flange | Vertical | 8 A | 250 V | Header, Male Pins, Shrouded (4 Side) | 4 | Tin | 150 V | Black | 8 | 3.5 mm | 0.138 in | Solder | 2 | Through Hole | 8 A | UL94 V-0 | Liquid Crystal Polymer (LCP) | 0.079 in | 2 mm | 10 mm | 0.394 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DMCV Series
Pluggable Terminal Blocks 8 Pos 3.5mm Dbl Row Through Hole Header
