Description
General part information

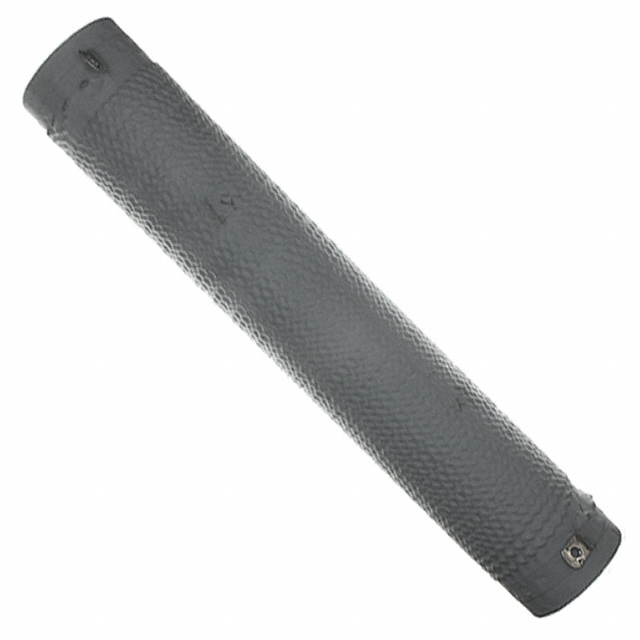

C1000J1R53
1.53 Ohms ±5% 1000W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | C1000J1R53 |
|---|---|
| Coating | Silicone Coated |
| Composition | Wirewound |
| Housing Type | Silicone Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature (Max) | 400 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Tubular, Radial |
| Power (Watts) | 1 kW |
| Resistance | 1.53 Ohms |
| Size / Dimension Diameter | 2.5 in |
| Size / Dimension Length | 15 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 5 % |
