82248 8771000

Active

Belden Inc.

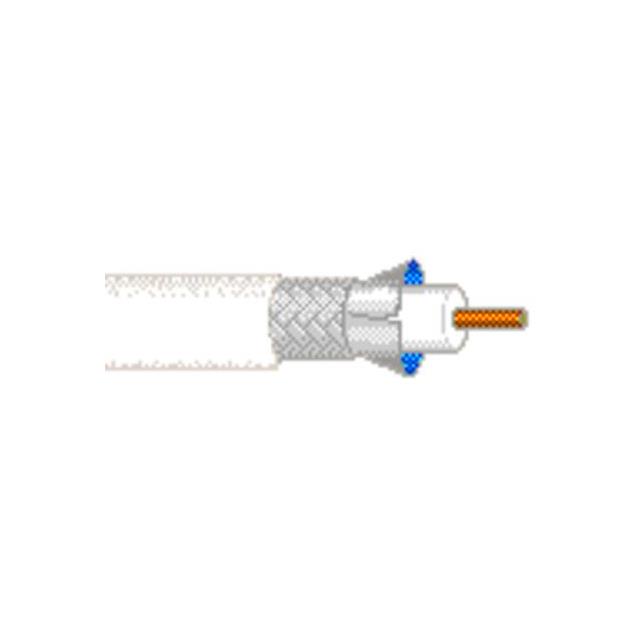

#18 FFEP RG6/U FLMRST

Search across all available documentation for this part.

Active

Belden Inc.

#18 FFEP RG6/U FLMRST

Technical Specifications

Parameters and characteristics for this part

Specification	82248 8771000

Cable Group	RG-6
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.17 in
Dielectric Diameter [diameter]	4.32 mm
Dielectric Material	Fluorinated Ethylene-Propylene (FEP)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	5.64 mm
Jacket (Insulation) Diameter [diameter]	0.222 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Natural
Length	304.8 m
Length	1000 ft
Shield Coverage	100 %, 65 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Video
VoP, Velocity of Propagation	82
Wire Gauge	18 AWG

Part	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Group	Conductor Strand	Shield Coverage	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Usage	Jacket Color	Length	Length	Dielectric Material	Cable Type	Jacket (Insulation) Material	Shield Type	Wire Gauge
Belden Inc. 82248 8771000	Aluminum Polyester Copper Tinned	Copper Bare	5.64 mm	0.222 in	RG-6	Solid	65 % 100 %	82	0.17 in	4.32 mm	75 Ohms	Video	Natural	304.8 m	1000 ft	Fluorinated Ethylene-Propylene (FEP)	Coaxial - Plenum	Poly-Vinyl Chloride (PVC)	Braid Foil	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.35
LCSC	Piece	1	$ 1.38

General part information

Coaxial - Plenum Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
