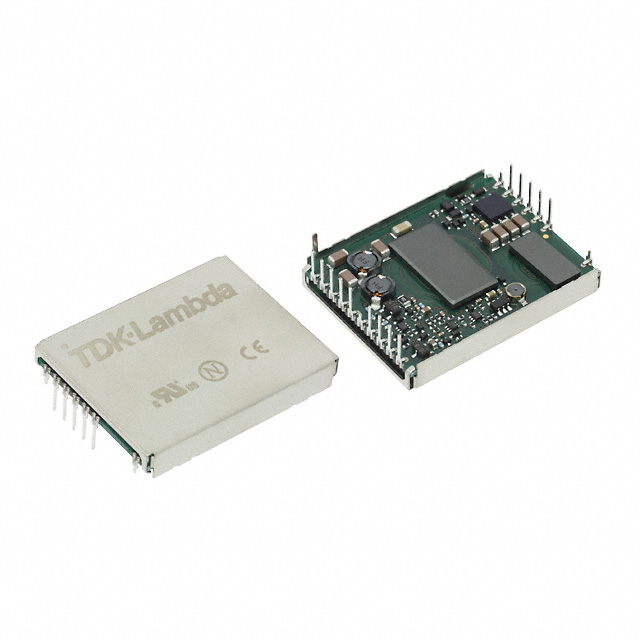

CC30-2403SFH-E

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 30 W, 1 OUTPUT, 3.3 V

Search across all available documentation for this part.

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 30 W, 1 OUTPUT, 3.3 V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CC30-2403SFH-E	CC30-2403 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Efficiency	89 %	89 %
Features	-	OCP, OVP, Remote On/Off
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	20-DIP Module, 17 Leads	17 Leads, 20-SMD Module, 20-DIP Module, 17 Leads
Power (Watts)	30 W	30 W
Size / Dimension [x]	38.4 mm	38.4 mm
Size / Dimension [x]	1.51 in	1.51 in
Size / Dimension [y]	1.32 in	1.32 in
Size / Dimension [y]	33.5 mm	33.5 mm
Size / Dimension [z]	8.3 mm	8.3 mm
Size / Dimension [z]	0.33 in	0.33 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	18 V	18 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	3.3 V	3.3 V

DC-DC CONV, ISO POL, 1 O/P, 30W, 9A, 3.3V

Part	Voltage - Output 1	Number of Outputs	Type	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Mounting Type	Efficiency	Power (Watts)	Features	Control Features	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Package / Case
TDK-LAMBDA CC30-2403SRP-E	3.3 V	1	Isolated Module	36 V	1.32 in	38.4 mm	1.51 in	8.3 mm	0.33 in	33.5 mm	ITE (Commercial)	Surface Mount	89 %	30 W	OCP, OVP, Remote On/Off	Active Low, Enable	18 V	85 °C	-40 °C	1000 V	17 Leads, 20-SMD Module
TDK-LAMBDA CC30-2403SFH-E	3.3 V	1	Isolated Module	36 V	1.32 in	38.4 mm	1.51 in	8.3 mm	0.33 in	33.5 mm	ITE (Commercial)	Through Hole	89 %	30 W		Active Low, Enable	18 V	85 °C	-40 °C	1000 V	20-DIP Module, 17 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 3.3V 9A 18V - 36V Input
