ST3060DJF
ActiveSMC Diode Solutions
60V, 30A, PDFNWB56-8L, ULTRA LOW
ST3060DJF
ActiveSMC Diode Solutions
60V, 30A, PDFNWB56-8L, ULTRA LOW
Description
General part information
ST3060DJF

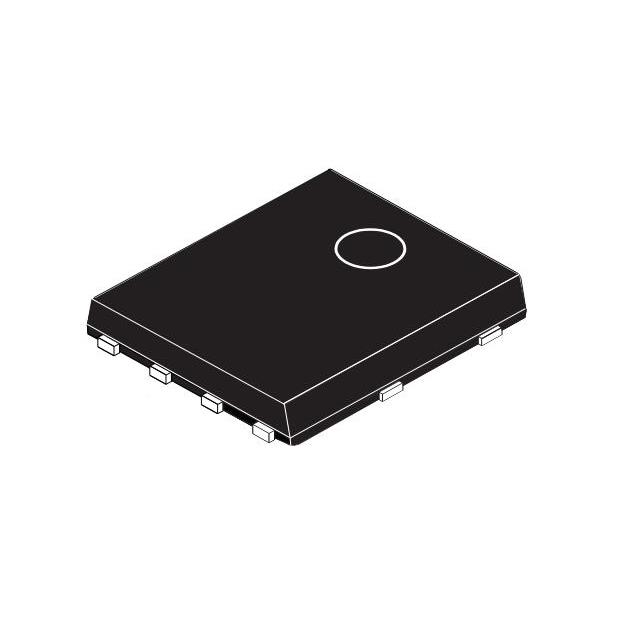

Diode 60 V 30A Surface Mount 8-PDFNWB (5x6)
Technical Specifications
Parameters and characteristics for this part
| Specification | ST3060DJF |
|---|---|
| Capacitance | 1000 pF |
| Current - Average Rectified (Io) | 30 A |
| Current - Reverse Leakage | 6 mA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | 8-PowerVDFN |
| Package Length | 5 mm |
| Package Name | 8-PDFNWB |
| Package Width | 6 mm |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) | 770 mV |
