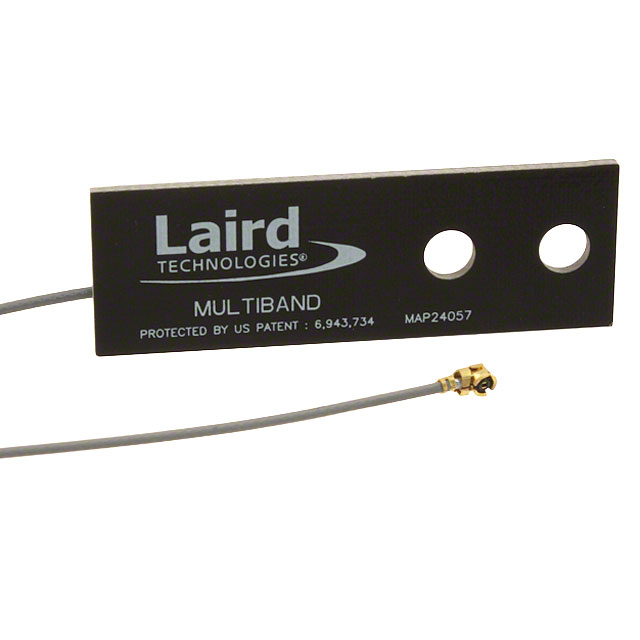

Specification	CAF94505

Antenna Type	PCB Trace
Applications	WiMax™, Wi-Fi, Bluetooth
Features	Cable, 100mm
Frequency (Center/Band)	5.6GHz, 2.4GHz, 5.3GHz
Frequency (Center/Band) - 1	2.4 GHz
Frequency (Center/Band) - 2	5.3 GHz
Frequency (Center/Band) - 3	5.6 GHz
Frequency Group	SHF, UHF
Frequency Group Maximum (UHF)	3 GHz
Frequency Group Minimum (SHF)	4 GHz
Frequency Group Minimum (UHF)	2 GHz
Frequency Range (Band 1) Maximum	2.5 GHz
Frequency Range (Band 1) Minimum	2.4 GHz
Frequency Range (Band 2) Maximum	6 GHz
Frequency Range (Band 2) Minimum	4.9 GHz
Gain	3.9dBi, 4dBi, 2dBi
Gain	4 dBi, 3.9 dBi, 2 dBi
Height (Max)	0.65 in
Mounting Type	Surface Mount
Number of Bands	3
RF Family/Standard	WiFi, Bluetooth
Termination Type	U.FL, I-PEX MHF1
VSWR	2
