926300-3
ActiveTE Connectivity AMP Connectors

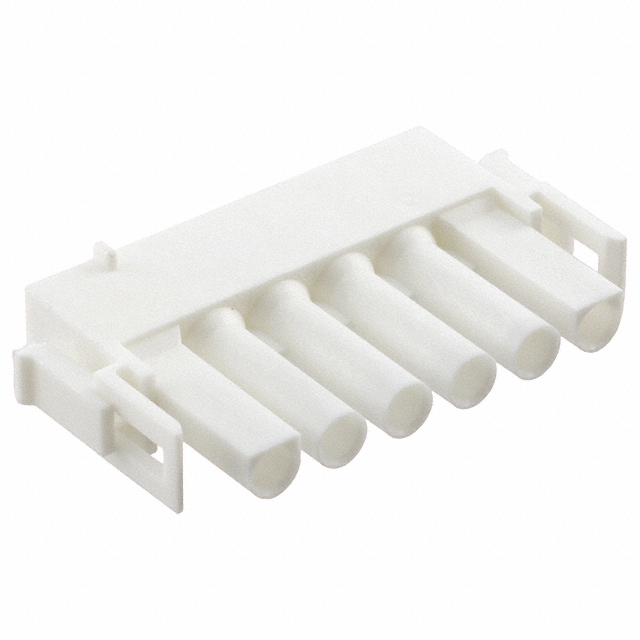

CONN PLUG HSG 6POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
926300-3
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 6POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 926300-3 | 926300 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Female Socket, Male or Female |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
926300 Series
CONN PLUG HSG 6POS
| Part | Note | Mounting Type | Number of Rows | Contact Type | Connector Type | Contact Termination | Fastening Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Color | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926300-4 | Contacts Not Included | Free Hanging (In-Line) | 1 | Female Socket | Plug | Crimp | Latch Lock | 6 | ||||
TE Connectivity AMP Connectors 926300-3 | Contacts Not Included | Free Hanging (In-Line) | 1 | Male or Female | Plug | Crimp | Latch Lock | 6 | -55 °C | 125 °C | Natural | Nylon, Polyamide (PA) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.56 | |||
| 800 | $ 0.53 | |||
| 1600 | $ 0.46 | |||
| 3200 | $ 0.44 | |||
Description
General part information
926300 Series
6 Rectangular Connectors - Housings Plug Natural
