1-965983-1
ActiveTE Connectivity AMP Connectors

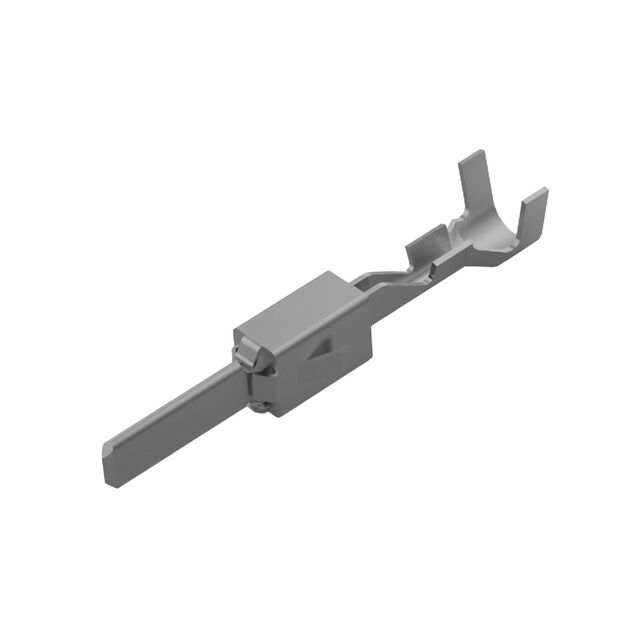

CONN TAB 20-24AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-965983-1
ActiveTE Connectivity AMP Connectors
CONN TAB 20-24AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-965983-1 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Tab |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.50 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.49 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.31 | |||
| 2500 | $ 0.31 | |||
965983 Series
CONN TAB 20-24AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Finish | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-965983-1 | 20 AWG | 24 AWG | 39.4 Áin | 1 Ám | Tab | Tin | Crimp |
Description
General part information
965983 Series
Tab Contact Tin 20-24 AWG Crimp
Documents
Technical documentation and resources
