TV06RW-15-35S

Active

Amphenol Aerospace Operations

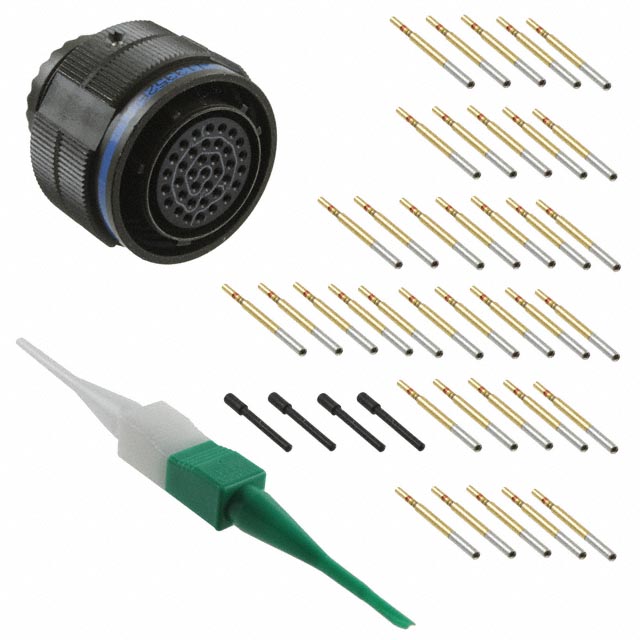

CONN PLUG FMALE 37POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHD389999 Datasheet

TV06RW-15-35S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 37POS GOLD CRIMP

Deep-Dive with AI

DocumentsHD389999 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TV06RW-15-35S

Applications	Aviation, Marine, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	15
Shielding	Shielded
Termination	Crimp

TV06RW Series

...

Part	Number of Positions	Shielding	Shell Finish	Connector Type	Note	Qualification	Orientation	Shell Material	Mounting Type	Contact Type	Features	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Size	Contact Size	Shell Size - Insert	Contact Finish - Mating	Contact Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Termination	Color	Applications
Amphenol Aerospace Operations TV06RW-25-24AB	24	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	B	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant	24	25	For Male Pins	Olive Drab	-65 ░C	347 °F	Circular	12 16
Amphenol Aerospace Operations TV06RW-13-35JE-LC	22 positions	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	E	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant	35	13	For Female Sockets	Olive Drab	-65 ░C	347 °F	Circular		22D
Amphenol Aerospace Operations TV06RW-11-98BD	6	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	D	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant			For Female Sockets	Olive Drab	-65 ░C	347 °F	Circular	20		11-98
Amphenol Aerospace Operations TV06RW-15-97SD	12	Shielded	Olive Drab Cadmium	Female Sockets Plug		MIL-DTL-38999 Series III	D	Aluminum	Free Hanging (In-Line)		Coupling Nut Self Locking	Environment Resistant	97	15			-65 ░C	347 °F					Gold	Copper Alloy	Thermoplastic	1.27 µm	50 µin	Metal	Crimp	Olive Drab	Aviation Marine Military
Amphenol Aerospace Operations TV06RW-25-187P-LC	187	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	N	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut	Environment Resistant	187	25	For Male Pins	Olive Drab	-65 ░C	347 °F	Circular	23
Amphenol Aerospace Operations TV06RW-11-98PA-LC	6	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	A	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant			For Male Pins	Olive Drab	-65 ░C	347 °F	Circular	20		11-98
Amphenol Aerospace Operations TV06RW-15-15P	15	Shielded	Olive Drab Cadmium	Male Pins Plug		MIL-DTL-38999 Series III	N	Aluminum	Free Hanging (In-Line)		Coupling Nut Self Locking	Environment Resistant	15	15			-65 ░C	347 °F					Gold	Copper Alloy	Thermoplastic	1.27 µm	50 µin	Metal	Crimp	Olive Drab	Aviation Marine Military
Amphenol Aerospace Operations TV06RW-9-98PA-LC		Unshielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	A	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant	98	9	For Male Pins	Olive Drab	-65 ░C	347 °F	Circular	20
Amphenol Aerospace Operations TV06RW-25-19AA	19	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	A	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant	19	25	For Male Pins	Olive Drab	-65 ░C	347 °F	Circular	12
Amphenol Aerospace Operations TV06RW-17-26SA-LC	26	Shielded	Cadmium	Plug Housing	Contacts Not Included	MIL-DTL-38999 Series III	A	Aluminum	Free Hanging (In-Line)	Crimp	Coupling Nut Self Locking	Environment Resistant	26	17	For Female Sockets	Olive Drab	-65 ░C	347 °F	Circular	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 370.75
		10	$ 320.25
		25	$ 292.98

Description

General part information

TV06RW Series

37 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

HD389999

Datasheet
