Description
General part information

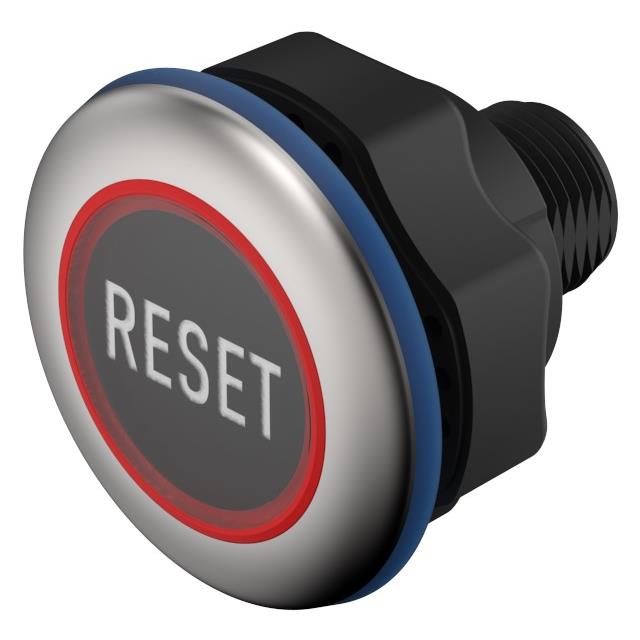

84-ACKS-B13-04BC
Pushbutton Switch Capacitive, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 84-ACKS-B13-04BC |
|---|---|
| Actuator Type | Round, Flush, Button |
| Color | Green, Red |
| Current Rating | 200 mA |
| Features | IO-Link Communication |
| Illumination Type | LED |
| Ingress Protection Description | High Temp Water Jets, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 22.5 mm |
| Panel Cutout Shape | Circular |
| Termination Style | Connector, Connector (M12) |
| Type | Illuminated, Capacitive |
| Voltage Rating - DC | 32 V |
