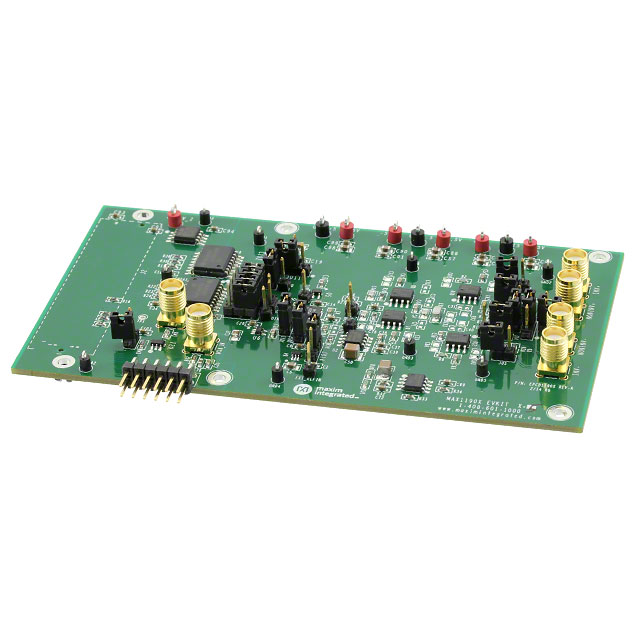

MAX11905EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11905
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11905EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11905
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11905EVKIT# | MAX11905 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | S/H-ADC |
| Data Interface | SPI | DSP, SPI |
| Input Range | ±VREF | ±VREF |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 20 | 20 |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 20-WFQFN Exposed Pad |
| Power (Typ) @ Conditions | 8.4 mW, 1.6 MSPS | 1.6 - 8.4 mW |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 1.6 M | 1.6 M |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-TQFN (4x4) |
| Utilized IC / Part | MAX11905 | MAX11905 |
| Voltage - Supply, Analog | - | 1.9 V |
| Voltage - Supply, Analog | - | 1.7 V |
| Voltage - Supply, Digital | - | 1.7 V |
| Voltage - Supply, Digital | - | 1.9 V |
MAX11905 Series
IC ADC 20BIT SAR 20TQFN
| Part | Ratio - S/H:ADC | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Architecture | Number of A/D Converters | Number of Inputs | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Reference Type | Number of Bits | Sampling Rate (Per Second) | Data Interface | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Input Type | Configuration | Power (Typ) @ Conditions | Utilized IC / Part | Input Range | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11905ETP+ | 1:1 | 1.9 V | 1.7 V | SAR | 1 | 1 | 1.7 V | 1.9 V | External, Internal | 20 | 1.6 M | DSP, SPI | Surface Mount | 85 °C | -40 °C | 20-TQFN (4x4) | 20-WFQFN Exposed Pad | Differential | S/H-ADC | ||||
Analog Devices Inc./Maxim Integrated MAX11905ETP+T | 1:1 | 1.9 V | 1.7 V | SAR | 1 | 1 | 1.7 V | 1.9 V | External, Internal | 20 | 1.6 M | DSP, SPI | Surface Mount | 85 °C | -40 °C | 20-TQFN (4x4) | 20-WFQFN Exposed Pad | Differential | S/H-ADC | ||||
Analog Devices Inc./Maxim Integrated MAX11905EVKIT# | 1 | 20 | 1.6 M | SPI | 1.6 MSPS, 8.4 mW | MAX11905 | ±VREF | Board(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 91.00 | |
Description
General part information
MAX11905 Series
MAX11905 - 20 Bit 1.6M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Documents
Technical documentation and resources
