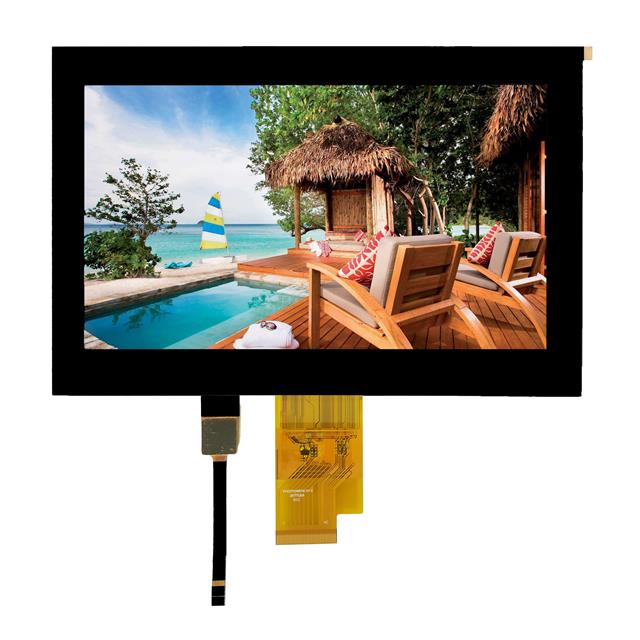

ATM0700M61K-CT

Active

AZ Displays

7.0" MIPI 1024 X 600 1100 NITS I

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATM0700M61K-CT

Active

AZ Displays

7.0" MIPI 1024 X 600 1100 NITS I

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATM0700M61K-CT	ATM0700 Series

Background Color	Black	White, Black
Backlight	LED	LED
Controller Type	-	FT5316
Diagonal Screen Size	177.8 mm	177.8 mm
Diagonal Screen Size	7 in	7 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching), TFT - Color, TN - Twisted Nematic
Dot Pitch [x]	0.05 mm	0.05 - 0.06 mm
Dot Pitch [y]	0.14 mm	0.14 - 0.19 mm
Dot Pixels [x]	1024	800 - 1024
Dot Pixels [y]	600 pixels	480 - 600 pixels
Dot Size	-	0.15 - 0.19 mm
Dot Size	-	0.12 - 0.18 mm
Dot Size	-	0.15 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	MIPI	LVDS, 24-Bit (RGB), MIPI
Interface	-	18
Touchscreen	Capacitive	Capacitive, Resistive
Viewing Area	-	93.04 mm
Viewing Area [x]	155.08 mm	154.08 - 156.7 mm
Viewing Area [y]	86.92 mm	85.92 - 155 mm

ATM0700 Series

GRAPHIC DISPLAY TFT RGB 7"

Part	Interface	Dot Size [x]	Dot Size [y]	Graphics Color	Backlight	Viewing Area [y]	Viewing Area [x]	Display Type	Background Color	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Dot Pitch [y]	Dot Pitch [x]	Diagonal Screen Size	Diagonal Screen Size	Dot Size [z]	Viewing Area [z]	Touchscreen
AZ Displays ATM0700L61	LVDS	0.15 mm	0.15 mm	Blue, Green, Red	LED	85.92 mm	154.2 mm	TFT - Color, IPS (In-Plane Switching)	White	1024	600 pixels	Transmissive	0.15 mm	0.05 mm	177.8 mm	7 in
AZ Displays ATM0700L61K	LVDS		0.12 mm	Blue, Green, Red	LED	85.92 mm	154.08 mm	TFT - Color, IPS (In-Plane Switching)	White	1024	600 pixels	Transmissive	0.15 mm	0.05 mm	177.8 mm	7 in	0.15 mm
AZ Displays ATM0700L74	LVDS			Blue, Green, Red	LED	155 mm		TFT - Color, IPS (In-Plane Switching)	Black	800	480	Transmissive	0.19 mm	0.06 mm	177.8 mm	7 in		93.04 mm
AZ Displays ATM0700D38B-CTN				Blue, Green, Red	LED	87 mm	154.6 mm	TFT - Color	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in
AZ Displays ATM0700H1-CT	24-Bit (RGB)			Blue, Green, Red	LED	87 mm	154.6 mm	TFT - Color, TN - Twisted Nematic	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in			Capacitive
AZ Displays ATM0700M61K-CT	MIPI			Blue, Green, Red	LED	86.92 mm	155.08 mm	TFT - Color, IPS (In-Plane Switching)	Black	1024	600 pixels	Transmissive	0.14 mm	0.05 mm	177.8 mm	7 in			Capacitive
AZ Displays ATM0700L6B	LVDS	0.19 mm	0.18 mm	Blue, Green, Red	LED	85.92 mm	154.08 mm	TFT - Color	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in
AZ Displays ATM0700M61K	MIPI			Blue, Green, Red	LED	89.45 mm	156.68 mm	TFT - Color, IPS (In-Plane Switching)	Black	1024	600 pixels	Transmissive	0.14 mm	0.05 mm	177.8 mm	7 in
AZ Displays ATM0700L61K-CT	LVDS	0.15 mm	0.15 mm	Blue, Green, Red	LED	85.92 mm	154.2 mm	TFT - Color, IPS (In-Plane Switching)	White	1024	600 pixels	Transmissive	0.15 mm	0.05 mm	177.8 mm	7 in			Capacitive
AZ Displays ATM0700L6J	LVDS	0.19 mm	0.18 mm	Blue, Green, Red	LED	85.92 mm	154.08 mm	TFT - Color	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.85
		10	$ 71.88
		100	$ 65.87

Description

General part information

ATM0700 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) MIPI 7" (177.80mm) 1024 x 600
