PD1030-8-SF
ActiveWITHWAVE CO LTD

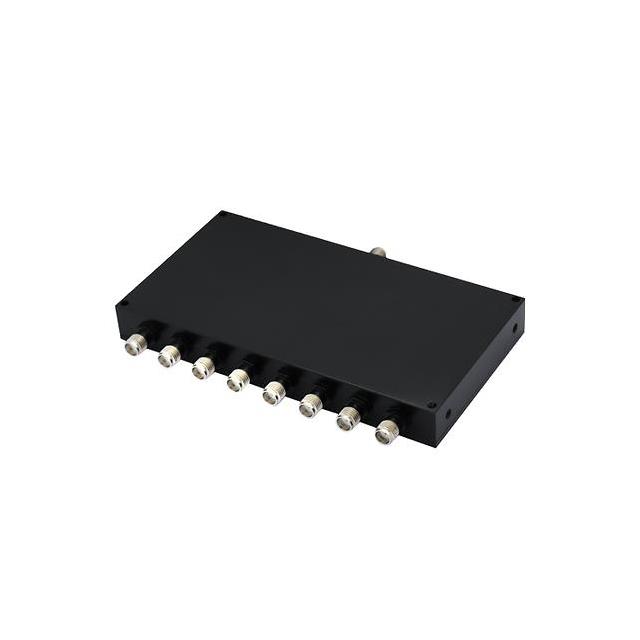

POWER DIVIDER 8 WAY 1 TO 3 GHZ
PD1030-8-SF
ActiveWITHWAVE CO LTD
POWER DIVIDER 8 WAY 1 TO 3 GHZ
Description
General part information
PD1030-8-SF
RF Power Divider 1 GHz ~ 3 GHz Isolation (Min) 18dB, 4° Imbalance (Max), 1.35 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PD1030-8-SF |
|---|---|
| Frequency (Max) | 3 GHz |
| Frequency (Min) | 1 GHz |
| Imbalance (Max) | 4 ° |
| Insertion Loss | 10.8 dB |
| Isolation (Min) | 18 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.551 in |
| Size / Dimension Length | 4.567 in |
| Size / Dimension Width | 2.441 in |
| VSWR (Max) | 1.35 |
