OSTTZ050100
ObsoleteOn Shore Technology Inc.

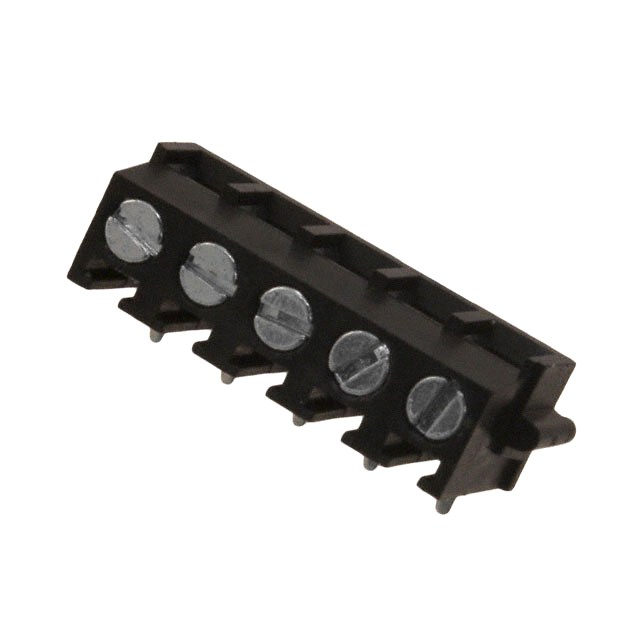

TERM BLK 5POS SIDE ENTRY 5MM SMD
OSTTZ050100
ObsoleteOn Shore Technology Inc.
TERM BLK 5POS SIDE ENTRY 5MM SMD
Description
General part information
OSTTZ050100
5 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTTZ050100 |
|---|---|
| Clamp Material - Plating | Brass |
| Color | Black |
| Contact Material - Plating | Brass |
| Current | 6 A |
| Features | Board Guide |
| Housing Material | Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -45 °C |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Screw Material | Steel |
| Screw Plating | Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 0.4 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
