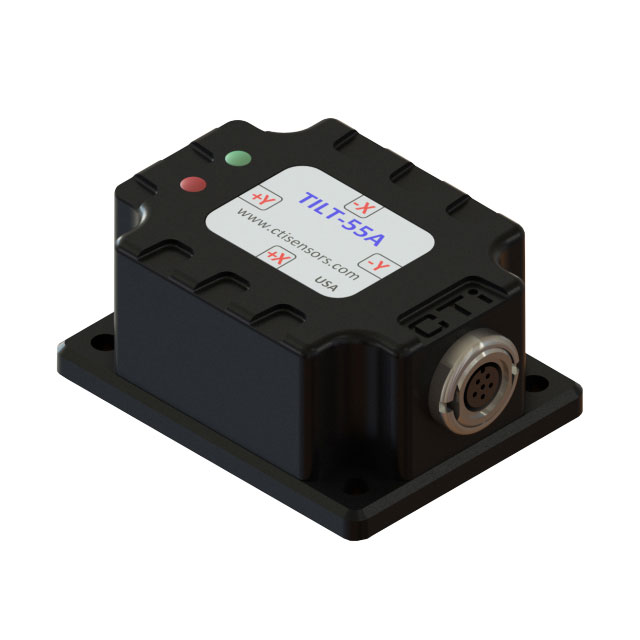

Tilt-55-A-4-A1
ActiveCTi Sensors
DYNAMIC INCLINOMETER, RS422
Tilt-55-A-4-A1
ActiveCTi Sensors
DYNAMIC INCLINOMETER, RS422
Description
General part information
Tilt-55-A-4-A1
Sensor Inclinometer ±180° X, Y Axis 1Hz ~ 200Hz Bandwidth Module
Technical Specifications
Parameters and characteristics for this part
| Specification | Tilt-55-A-4-A1 |
|---|---|
| Axis | X, Y |
| Bandwidth (Max) | 200 Hz |
| Bandwidth (Min) | 1 Hz |
| Interface | RS-422 |
| Measuring Range (Max) | 180 ° |
| Measuring Range (Min) | -180 ° |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital |
| Package / Case | Module |
| Voltage Rating (Max) | 38 V |
| Voltage Rating (Min) | 4.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
