Technical Specifications
Parameters and characteristics for this part
| Specification | MFR50SFTE52-3M92 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 3.92 MOhms |
| Size / Dimension Diameter | 0.094 in, 0.248 in |
| Size / Dimension Length | 0.248 in, 0.094 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 5000 | $ 0.02 | <1d |
CAD
3D models and CAD resources for this part
Description
General part information
MFR50SFTE52-3M92

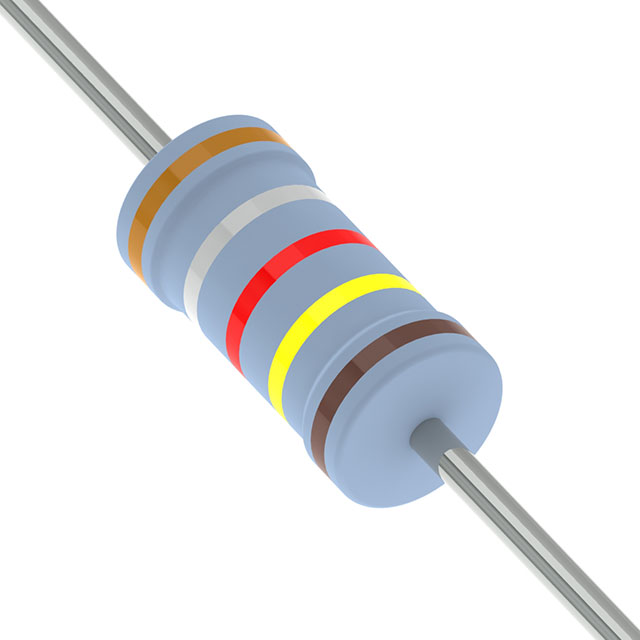

3.92 MOhms ±1% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
Documents
Technical documentation and resources
