RSB6-250M-D1MU-LP-C
ActiveLoadstar Sensors

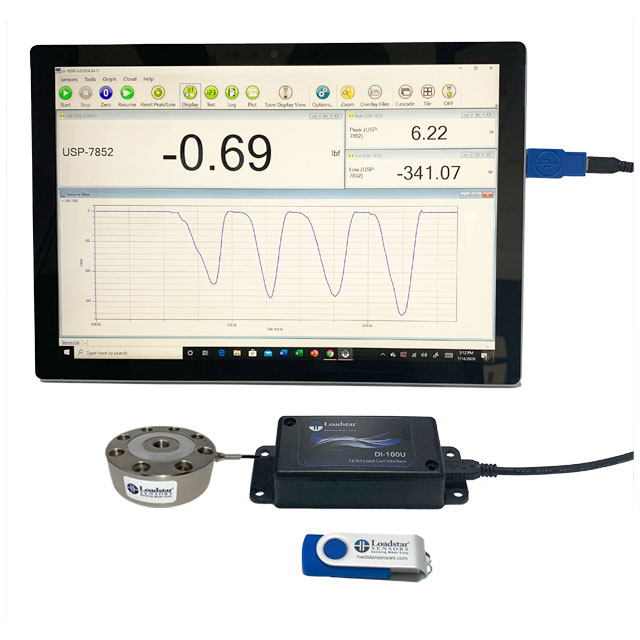

250 KGF PANCAKE USB KIT COMP
RSB6-250M-D1MU-LP-C
ActiveLoadstar Sensors
250 KGF PANCAKE USB KIT COMP
Description
General part information
RSB6-250M-D1MU-LP-C
250 KGF PANCAKE USB KIT COMP
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB6-250M-D1MU-LP-C |
|---|---|
| Accuracy | 0.05 % |
| Actuator Diameter | 10 mm |
| Actuator Pitch | 1.5 mm |
| Actuator Style | Internal Thread |
| Actuator Type | Pancake |
| Compensated Temperature (Max) | 40 °C |
| Compensated Temperature (Min) | -10 °C |
| Includes | USB Interface, Software, Sensor, Calibration w/Certificate |
| Operating Force | 250 kgf |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output | USB |
| Sensor Type | Load Cell |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
