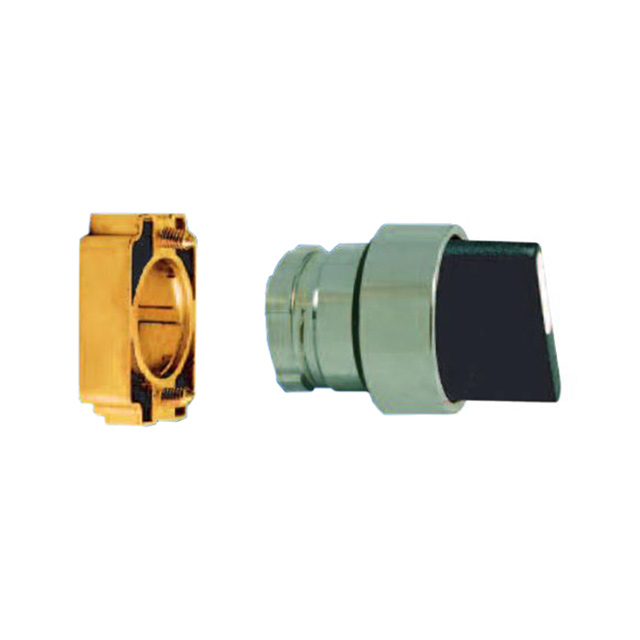

2AS2-3
ActiveAltech Corporation
SWITCH ACCESS MAINTAINED OPERATOR SELECTOR SWITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2AS2-3 | 2AS2 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 22 mm | 22 mm |
| (Select First, Then Apply Filters) Compatible Series | Altech | Altech |
| Actuator Type | Selector | Selector |
| Illumination | Non-Illuminated | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 22.5 mm | 22.5 mm |
| Requires | Contact Block(s) | Contact Block(s) |
| Type | Maintained | Momentary, Maintained |
2AS2 Series
CONFIG SW BODY SELECT NON-ILLUM
| Part | Actuator Type | Illumination | Panel Cutout Dimensions [diameter] | Type | Requires | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series |
|---|---|---|---|---|---|---|---|
Altech Corporation 2AS2E-2 | Selector | Non-Illuminated | 22.5 mm | Momentary | Contact Block(s) | 22 mm | Altech |
Altech Corporation 2AS2-3 | Selector | Non-Illuminated | 22.5 mm | Maintained | Contact Block(s) | 22 mm | Altech |
Altech Corporation 2AS2E-5 | Selector | Non-Illuminated | 22.5 mm | Momentary | Contact Block(s) | 22 mm | Altech |
Altech Corporation 2AS2E-6 | Selector | Non-Illuminated | 22.5 mm | Momentary | Contact Block(s) | 22 mm | Altech |
Altech Corporation 2AS2-4-NB | Selector | Non-Illuminated | 22.5 mm | Momentary | Contact Block(s) | 22 mm | Altech |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.54 | |
| 5 | $ 18.10 | |||
| 10 | $ 16.97 | |||
| 25 | $ 15.55 | |||
| 50 | $ 14.56 | |||
| 100 | $ 13.66 | |||
| 250 | $ 12.53 | |||
| 500 | $ 12.29 | |||
Description
General part information
2AS2 Series
Configurable Switch Body Selector Non-Illuminated
