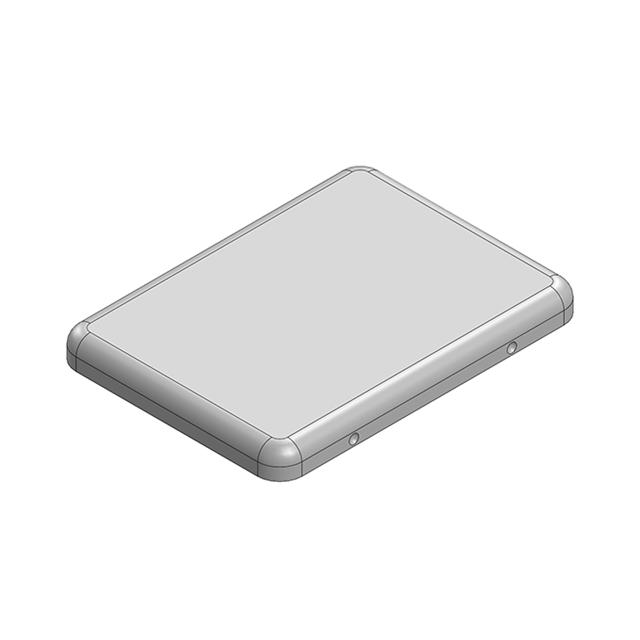

MS190-10C
ActiveMasach Tech Ltd.
19.4 X 14.3 X 1.7MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD COVER (CRS); MATERIAL: TIN-STEEL (CRS); PACKAGE TYPE: TRAY
Deep-Dive with AI
Search across all available documentation for this part.
MS190-10C
ActiveMasach Tech Ltd.
19.4 X 14.3 X 1.7MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD COVER (CRS); MATERIAL: TIN-STEEL (CRS); PACKAGE TYPE: TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS190-10C |
|---|---|
| Height - Overall [z] | 0.067 " |
| Height - Overall [z] | 1.7 mm |
| Length - Overall [x] | 0.764 in |
| Length - Overall [x] | 19.4 mm |
| Mounting Type | Snap Fit |
| Type | Cover |
| Ventilation | Non-Vented |
| Width - Overall [y] | 0.563 in |
| Width - Overall [y] | 14.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.27 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.07 | |||
| 100 | $ 0.88 | |||
| 300 | $ 0.83 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.58 | |||
| 2400 | $ 0.54 | |||
| 4900 | $ 0.51 | |||
Description
General part information
MS190 Series
RF Shield Cover 0.563" (14.30mm) X 0.764" (19.40mm) Non-Vented Snap Fit
Documents
Technical documentation and resources
