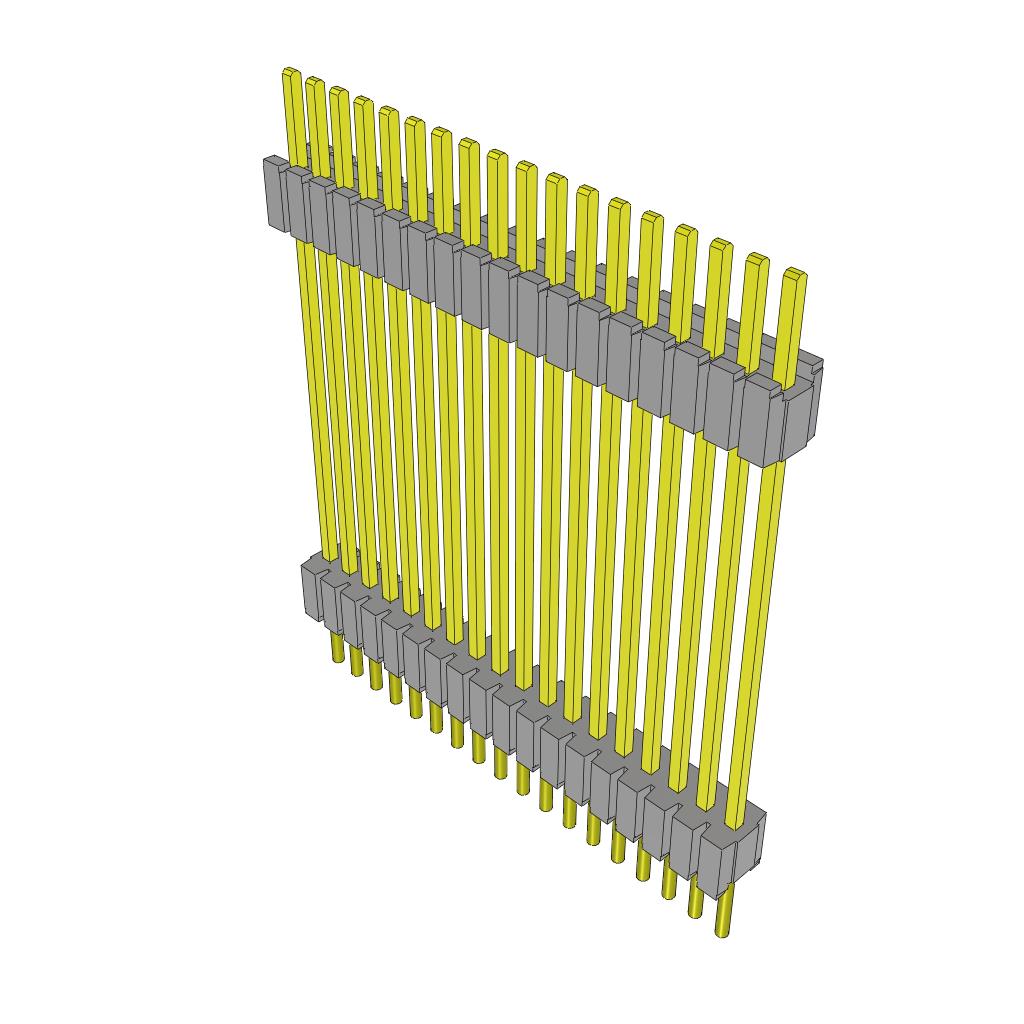

Specification	DWM-18-61-G-S-810

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10 µin
Length - Overall Pin	1.05 in
Length - Post (Mating)	0.12 in
Length - Stack Height	0.81 in
Length - Tail	0.12 in
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	1
Pitch	0.05 in
Termination	Solder

DWM-18 Series

Part	Contact Finish Thickness - Post (Mating)	Length - Stack Height	Length - Tail	Contact Finish - Post (Mating)	Termination	Mounting Type	Length - Overall Pin	Length - Post (Mating)	Number of Rows	Color	Number of Positions	Pitch	Row Spacing
Samtec Inc. DWM-18-60-G-S-625	10 µin	0.625 in	0.12 in	Gold	Solder	Through Hole	0.825 in	0.08 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-60-S-S-555	30 µin	0.555 in	0.12 in	Gold	Solder	Through Hole	0.825 in	0.15 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-54-G-S-250	10 µin	0.25 in	0.12 in	Gold	Solder	Through Hole	0.555 in	0.185 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-61-S-S-661	30 µin	0.661 in	0.12 in	Gold	Solder	Through Hole	1.05 in	0.269 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-53-G-S-268	10 µin	0.268 in	0.12 in	Gold	Solder	Through Hole	0.505 in	0.117 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-01-S-S-250	30 µin	0.25 in	0.12 in	Gold	Solder	Through Hole	0.45 in	0.08 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-59-G-S-500	10 µin	0.5 in	0.12 in	Gold	Solder	Through Hole	0.755 in	0.135 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-57-G-S-405	10 µin	0.405 in	0.12 in	Gold	Solder	Through Hole	0.65 in	0.125 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-54-G-S-319	10 µin	0.319 in	0.12 in	Gold	Solder	Through Hole	0.555 in	0.116 in	1	Black	18	0.05 in
Samtec Inc. DWM-18-01-T-D-250		0.25 in	0.12 in	Tin	Solder	Through Hole	0.45 in	0.08 in	2	Black	36	0.05 in	0.1 in
