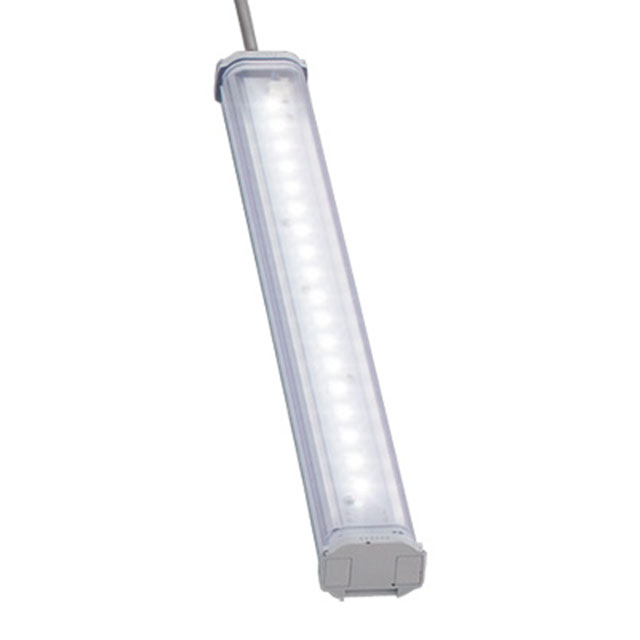

LF2B-C3P-BTHWW2-1M

Active

IDEC Corporation

LED BAR IP65 330MM 12V 24VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEC Corporation

LED BAR IP65 330MM 12V 24VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LF2B-C3P-BTHWW2-1M	LF2B-C3 Series

Approval Agency	cULus, CE	cULus, CE
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Illumination Color	White, Cool	White, Cool
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Length	330 mm	330 mm
Length [x]	12.99 "	12.99 "
Lens Type	Flat, Clear	Flat, Clear
Luminous Flux	360 lm	360 lm
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power - Rated	4.9 W	4.4 - 4.9 W
Profile (W x H) [x]	1.57 in	1.57 in
Profile (W x H) [x]	40 mm	40 mm
Profile (W x H) [y]	29 mm	29 mm
Profile (W x H) [y]	1.14 in	1.14 in
Rated Life	40000 Hours	40000 Hours
Termination Style	Cable Leads	Cable Leads
Voltage - Supply	12 VDC, 24 VDC	12 - 24 VDC
Voltage - Supply	-	100 VAC
Voltage - Supply	-	240 VAC

LED LIGHT BAR, COOL WHITE, 465 LM, 4.4 W, 240 VAC, 330 MM, IP65

Part	Lens Type	Housing Material	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Approval Agency	Rated Life	Luminous Flux	Termination Style	Illumination Color	Length	Length [x]	Ingress Protection	Power - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply
IDEC Corporation LF2B-C3P-ATHWW2-1M	Clear, Flat	Polycarbonate (PC)	1.57 in	29 mm	40 mm	1.14 in	100 VAC	240 VAC	CE, cULus	40000 Hours	360 lm	Cable Leads	Cool, White	330 mm	12.99 "	IP65 - Dust Tight, Water Resistant	4.4 W	55 °C	-30 ░C
IDEC Corporation LF2B-C3P-BTHWW2-1M	Clear, Flat	Polycarbonate (PC)	1.57 in	29 mm	40 mm	1.14 in			CE, cULus	40000 Hours	360 lm	Cable Leads	Cool, White	330 mm	12.99 "	IP65 - Dust Tight, Water Resistant	4.9 W	55 °C	-30 ░C	12 VDC, 24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED BAR IP65 330MM 12V 24VDC ROHS COMPLIANT: YES
