TSA1204IFT
ActiveSTMicroelectronics

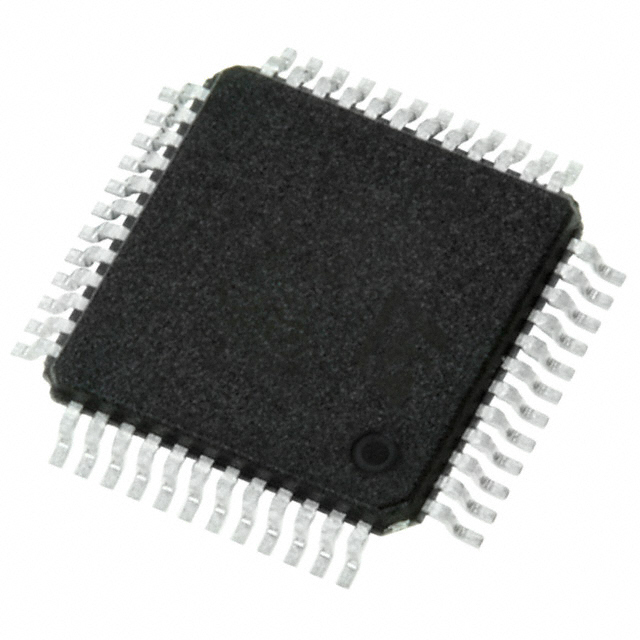

IC ADC 12BIT PIPELINED 48TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSA1204IFT
ActiveSTMicroelectronics
IC ADC 12BIT PIPELINED 48TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA1204IFT |
|---|---|
| Architecture | Pipelined |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Features | Simultaneous Sampling |
| Input Type | Differential |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 bits |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-TQFP |
| Ratio - S/H:ADC | 1:1 |
| Reference Type | External, Internal |
| Supplier Device Package | 48-TQFP (7x7) |
| Voltage - Supply, Analog [Max] | 2.7 V |
| Voltage - Supply, Analog [Min] | 2.25 V |
| Voltage - Supply, Digital [Max] | 2.7 V |
| Voltage - Supply, Digital [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TSA1204 Series
IC ADC 12BIT PIPELINED 48TQFP
| Part | Mounting Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Architecture | Reference Type | Features | Number of Bits | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Configuration | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Data Interface | Ratio - S/H:ADC | Input Type | Number of A/D Converters | Number of Inputs | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSA1204IFT | Surface Mount | 2.7 V | 2.25 V | Pipelined | External, Internal | Simultaneous Sampling | 12 bits | 2.25 V | 2.7 V | S/H-ADC | 48-TQFP | 85 °C | -40 °C | Parallel | 1:1 | Differential | 1 | 2 | 48-TQFP (7x7) |
Description
General part information
TSA1204 Series
12 Bit Analog to Digital Converter 2 Input 1 Pipelined 48-TQFP (7x7)
