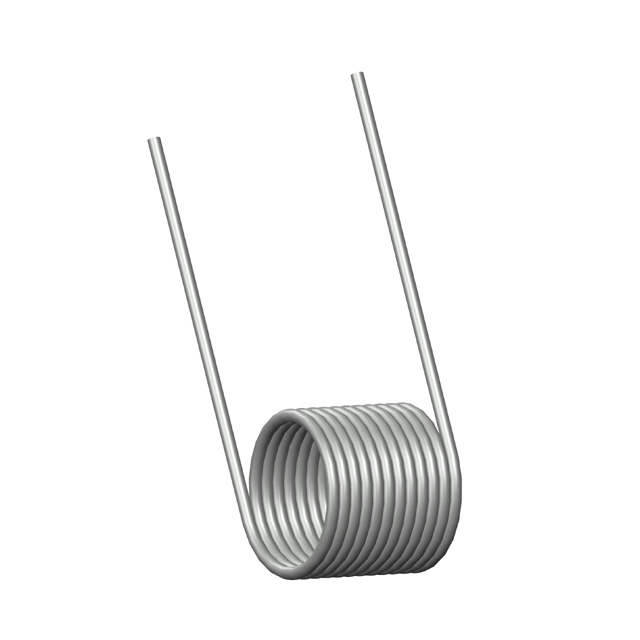

TO-5245LCS

TO-5245LCS

Active
Century Spring Corp

TOR O=1.243, W=.095

Find alt
TO-5245LCS

TO-5245LCS

Active
Century Spring Corp

TOR O=1.243, W=.095

Find alt

Description

General part information

TO-5245LCS

TOR O=1.243, W=.095

Technical Specifications

Parameters and characteristics for this part

SpecificationTO-5245LCS
Deflection Angle337 °
Diameter - Outside1.24 in
FinishNone
Leg Length3 in
Mandrel Diameter0.83 in
MaterialMusic Wire
Number of Coils11.5
Wind DirectionLeft
Wire Diameter0.095 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TO-5245LCS | Datasheet
