PE44970
ActivePasternack

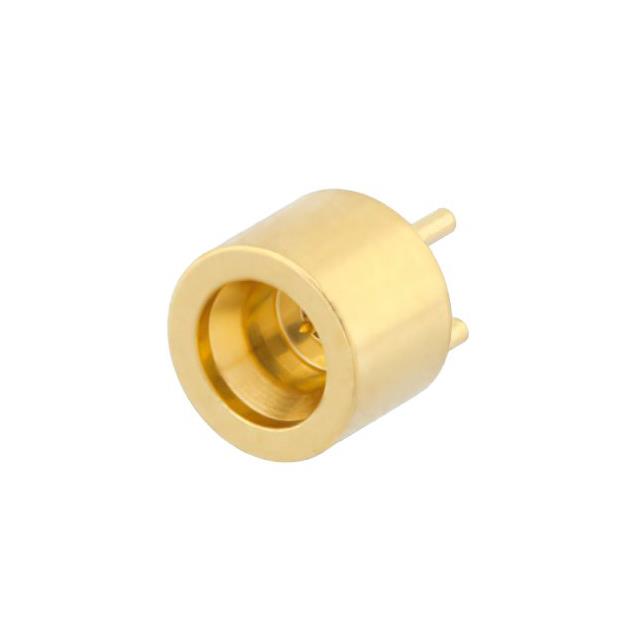

MINI SMP MALE FULL DETENT CONNEC
PE44970
ActivePasternack
MINI SMP MALE FULL DETENT CONNEC
Description
General part information
PE44970
SMP, Mini Connector Plug, Male Pin 50 Ohms Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44970 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | Mini, SMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyamide-Imide (PAI) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max | 40 Gbps |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Insertion Loss | 0.76 dB |
| Mating Cycles | 100 cycles |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
