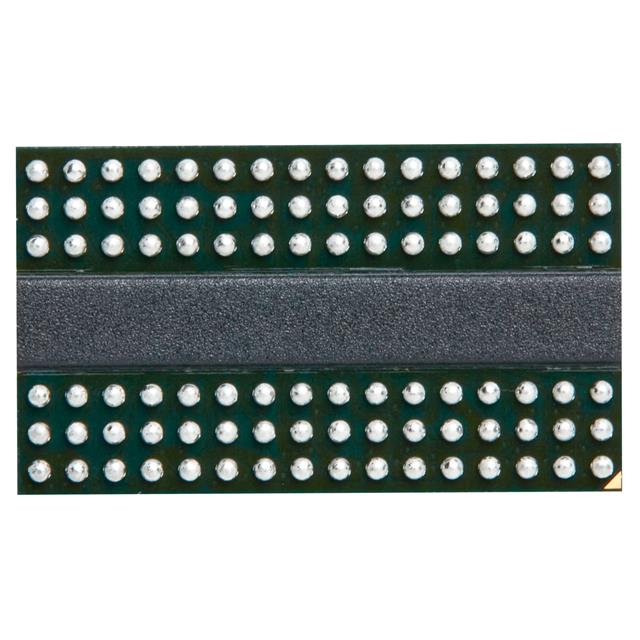

D5116AN9CXGXN-U
ActiveKingston Technology
IC DRAM 8GBIT PARALLEL 96FBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D5116AN9CXGXN-U
ActiveKingston Technology
IC DRAM 8GBIT PARALLEL 96FBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D5116AN9CXGXN-U | D5116 Series |
|---|---|---|
| Memory Format | DRAM | DRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 512 M | 512 M |
| Memory Size | 1024 KB | 1024 KB |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 203 °F | 203 °F |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Supplier Device Package | 7.5, 13.5 | 7.5 - 13.5 |
| Supplier Device Package | 96-FBGA | 96-FBGA |
| Technology | SDRAM - DDR4 | SDRAM - DDR4 |
| Voltage - Supply | 1.2 V | 1.2 V |
D5116 Series
DRAM CHIP DDR4 SDRAM 8GBIT 512MX16 1.2V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Memory Type | Memory Size | Memory Format | Mounting Type | Memory Organization | Memory Interface | Supplier Device Package | Supplier Device Package | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kingston Technology D5116AN9CXGXNI-U | -40 °C | 203 °F | SDRAM - DDR4 | Volatile | 1024 KB | DRAM | Surface Mount | 512 M | Parallel | 7.5, 13.5 | 96-FBGA | 1.2 V |
Kingston Technology D5116AN9CXGXN-U | 0 °C | 203 °F | SDRAM - DDR4 | Volatile | 1024 KB | DRAM | Surface Mount | 512 M | Parallel | 7.5, 13.5 | 96-FBGA | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.89 | |
| 10 | $ 6.87 | |||
| 25 | $ 6.09 | |||
| 80 | $ 5.33 | |||
| 230 | $ 4.83 | |||
| 440 | $ 4.58 | |||
| 945 | $ 4.34 | |||
Description
General part information
D5116 Series
SDRAM - DDR4 Memory IC 8Gbit Parallel 96-FBGA (7.5x13.5)
Documents
Technical documentation and resources
