Description
General part information

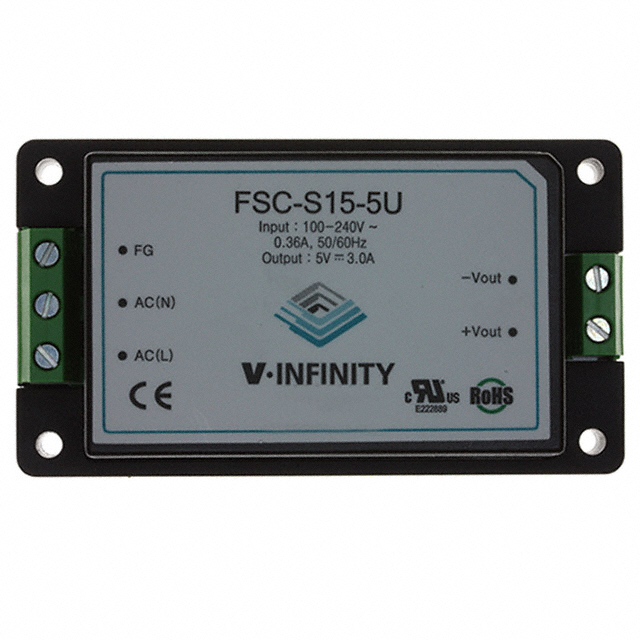

FSC-S15-5U
Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | FSC-S15-5U |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE |
| Current - Output 1 | 3 A |
| Efficiency | 75 % |
| Features | Universal Input, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 1.02 in |
| Size / Dimension Length | 3.61 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
