Description
General part information

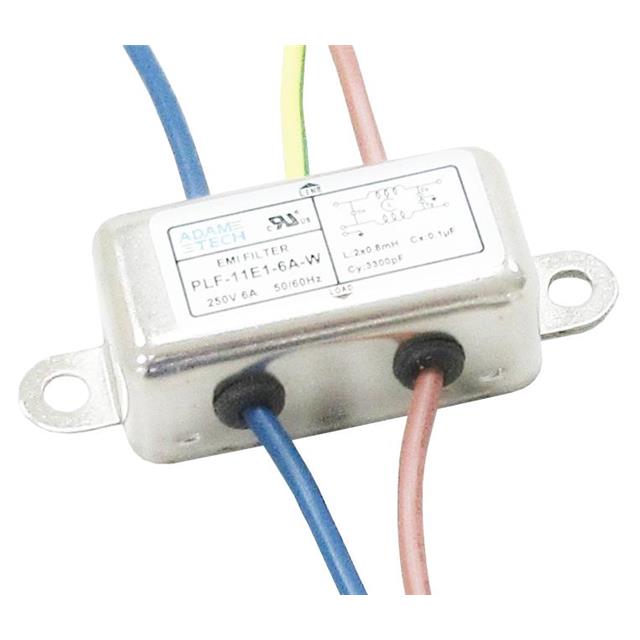

PLF-11E1-6A-W
Single Phase EMC/EMI Line Filter 6 A 115V, 250V 50 ~ 60Hz Single Stage Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | PLF-11E1-6A-W |
|---|---|
| Approval Agency | cURus |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 800 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 250V, 115V |
