16282-2SG-311

Active

Conxall/Switchcraft

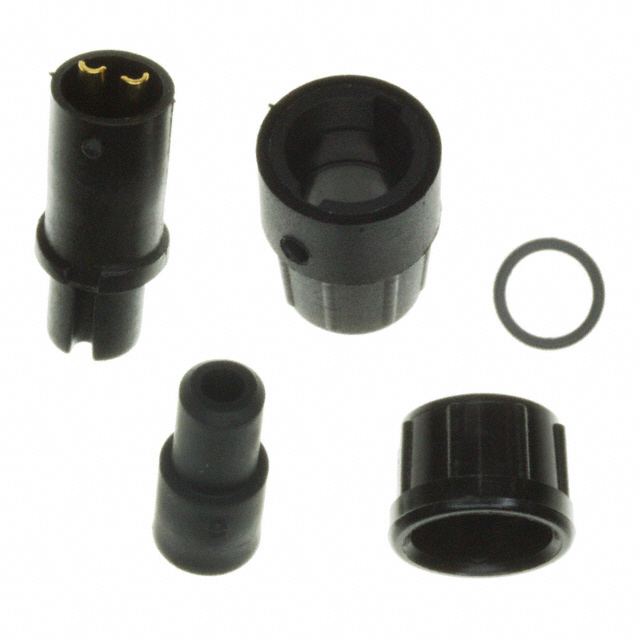

CONN PLUG FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16282-2SG-311	16282-2S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN PLUG FMALE 2P GOLD SLDR CUP

Part	Shielding	Backshell Material, Plating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Mounting Type	Number of Positions	Contact Material	Ingress Protection	Connector Type	Material Flammability Rating	Applications	Fastening Type	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Orientation	Color	Features	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 16282-2SG-315	Unshielded	Thermoplastic	Gold	85 °C	-40 °C	7.5 A	600 VAC	Free Hanging (In-Line)	2	Copper Alloy	IP67 - Dust Tight, Waterproof	Female Sockets, Plug	UL94 HB	Data, Industrial, Instrumentation, Medical	Bayonet Lock	Plastic	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Keyed	Black	Backshell
Conxall/Switchcraft 16282-2SG-311	Unshielded	Thermoplastic	Gold	85 °C	-40 °C	7.5 A	600 VAC	Free Hanging (In-Line)	2	Copper Alloy	IP67 - Dust Tight, Waterproof	Female Sockets, Plug	UL94 HB	Data, Industrial, Instrumentation, Medical	Bayonet Lock	Plastic			Keyed	Black	Backshell	2.29 mm	0.09 in, 0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
