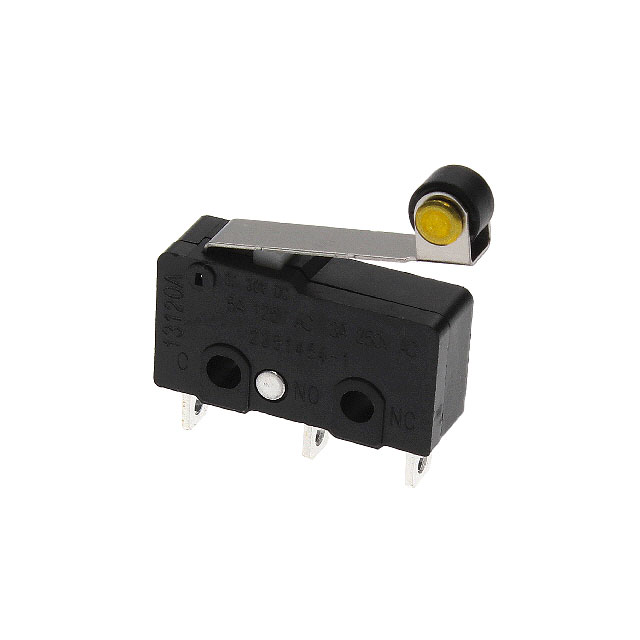

SAJ25YXWHL147SDTSEQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAJ25YXWHL147SDTSEQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ25YXWHL147SDTSEQ

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	3 A, 5 A
Differential Travel	0.8 mm
Differential Travel	0.031 "
Electrical Life	10000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position [custom]	0.571 in
Operating Position [custom]	14.5 mm
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Overtravel	1.2 mm
Overtravel	0.047 "
Pretravel	0.188 in
Pretravel	4.8 mm
Release Force	60 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SAJ25Y Series

Part	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Actuator Type	Mechanical Life	Electrical Life	Operating Force	Circuit	Pretravel	Pretravel	Overtravel	Overtravel	Release Force	Termination Style	Switch Function	Operating Position	Operating Position	Differential Travel	Differential Travel	Voltage Rating - DC	Operating Position [custom]	Operating Position [custom]	Pretravel
TE Connectivity Raychem Cable Protection SAJ25YXUL1147SDTSEQ	125 V	-40 °C	75 ░C	3 A 5 A	Chassis Mount	Lever Straight	10000000 Cycles	10000 Cycles	50 gf	SPDT	0.138 in	3.5 mm	1.2 mm	0.047 "	60 gf	Solder Lug	On-Mom	12.5 mm	0.492 in	0.8 mm	0.031 "	30 V
TE Connectivity Raychem Cable Protection SAJ25YXRHL147SDTSEQ	125 V	-40 °C	75 ░C	3 A 5 A	Chassis Mount	Lever Simulated Roller	10000000 Cycles	10000 Cycles	50 gf	SPDT	0.188 in	4.8 mm	1.2 mm	0.047 "	60 gf	Solder Lug	On-Mom			0.8 mm	0.031 "	30 V
TE Connectivity Raychem Cable Protection SAJ25YXPP0147SDTSEQ	125 V	-40 °C	75 ░C	3 A 5 A	Chassis Mount	Round (Pin Plunger)	10000000 Cycles	10000 Cycles	150 gf	SPDT	0.02 in	0.5 mm	0.5 mm	0.02 in	25 gf	Solder Lug	On-Mom	8.4 mm	0.33 in	0.1 mm	0.004 in	30 V
TE Connectivity Raychem Cable Protection SAJ25YXWHL147SDTSEQ	125 V	-40 °C	75 ░C	3 A 5 A	Chassis Mount	Lever Roller	10000000 Cycles	10000 Cycles	50 gf	SPDT	0.188 in	4.8 mm	1.2 mm	0.047 "	60 gf	Solder Lug	On-Mom			0.8 mm	0.031 "	30 V	0.571 in	14.5 mm
TE Connectivity Raychem Cable Protection SAJ25YXHL0147SDTSEQ	125 V	-40 °C	75 ░C	3 A 5 A	Chassis Mount	Lever Straight	10000000 Cycles	10000 Cycles	50 gf	SPDT		0.125 in	1.2 mm	0.047 "	60 gf	Solder Lug	On-Mom	8.8 mm	0.345 in	0.8 mm	0.031 "	30 V			3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.54
		10	$ 1.46
		100	$ 1.28
		1000	$ 0.90
		5000	$ 0.82

Description

General part information

SAJ25Y Series

Switch SPDT Chassis Mount
