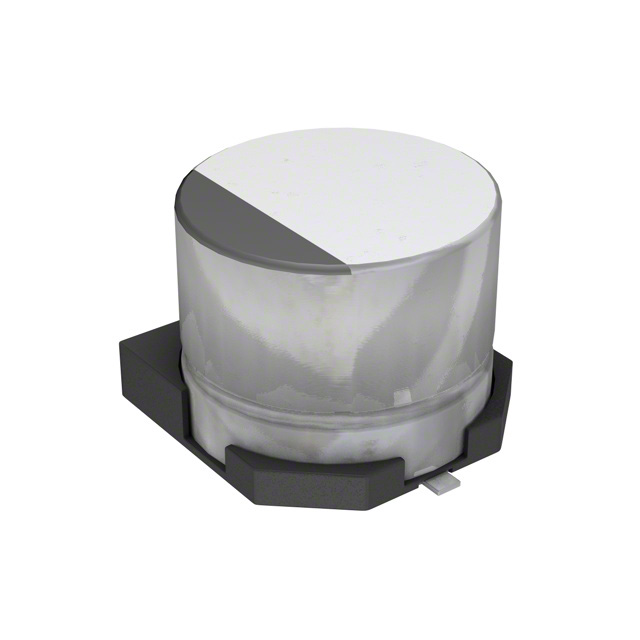

AVS226M63E16T-F
NRNDCornell Dubilier Knowles
CAP ALUM 22UF 20% 63V SMD
AVS226M63E16T-F
NRNDCornell Dubilier Knowles
CAP ALUM 22UF 20% 63V SMD
Description
General part information
AVS226M63E16T-F
22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 13.6Ohm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AVS226M63E16T-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 13.6 Ohm |
| Height - Seated (Max) | 0.244 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 40 mA, 68 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
