74CBTLV3125QG
ActiveIDT, Integrated Device Technology Inc

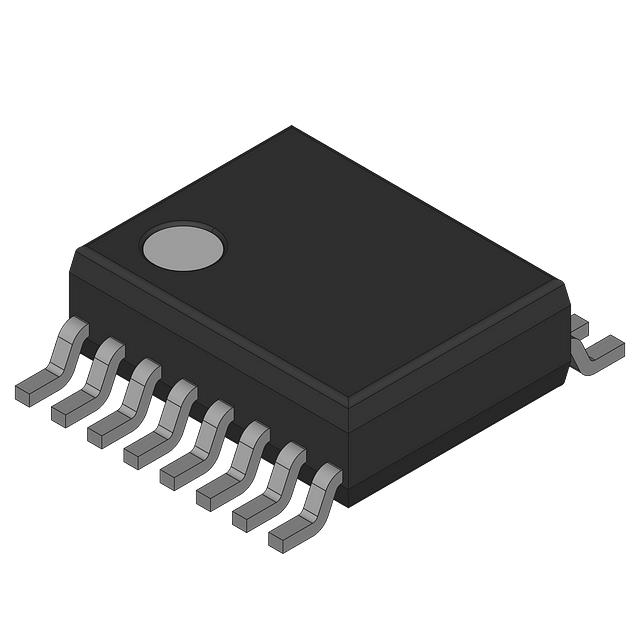

IC BUS SWITCH 1 X 1:1 16QSOP
Deep-Dive with AI
Search across all available documentation for this part.
74CBTLV3125QG
ActiveIDT, Integrated Device Technology Inc
IC BUS SWITCH 1 X 1:1 16QSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74CBTLV3125QG | 74CBTLV3125 Series |
|---|---|---|
| - | - | |
| Circuit | 1 x 1:1 | 1 x 1:1 |
| Independent Circuits | 4 | 4 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 16-SSOP | 16-SSOP |
| Package / Case | 3.9 mm | 3.9 mm |
| Supplier Device Package | 16-QSOP | 16-QSOP |
| Type | Bus Switch | Bus Switch |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.3 V | 2.3 V |
| Voltage Supply Source | Single Supply | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 310 | $ 0.97 | |
74CBTLV3125 Series
IC BUS SWITCH 1 X 1:1 16QSOP
| Part | Voltage Supply Source | Supplier Device Package | Independent Circuits | Circuit | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Package / Case | Package / Case | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 74CBTLV3125QG | Single Supply | 16-QSOP | 4 | 1 x 1:1 | 2.3 V | 3.6 V | 85 °C | -40 °C | Surface Mount | 0.154 in | 16-SSOP | 3.9 mm | Bus Switch |
IDT, Integrated Device Technology Inc 74CBTLV3125SA4PG |
Description
General part information
74CBTLV3125 Series
Bus Switch 1 x 1:1 16-QSOP
Documents
Technical documentation and resources
No documents available
