787928-7

Active

TE Connectivity AMP Connectors

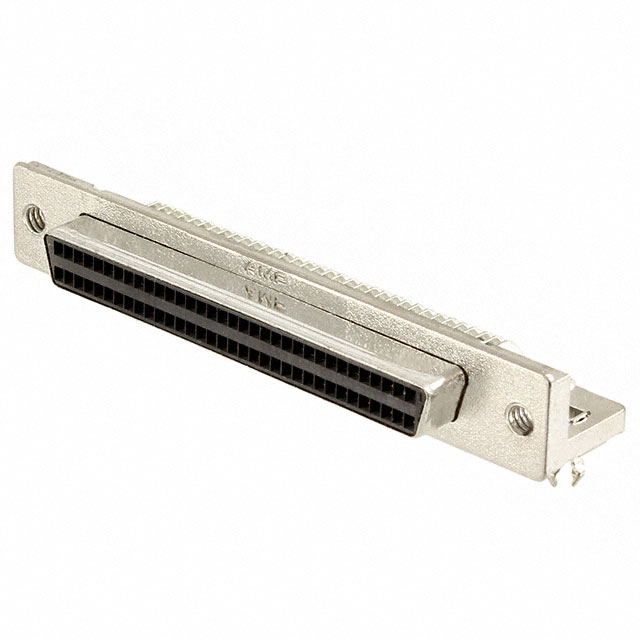

CONN D-TYPE RCPT 68POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	787928-7

Backset Spacing	3.71 mm
Backset Spacing	0.146 in
Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	68
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Solder
Voltage Rating	30 VDC

CONN D-TYPE RCPT 68POS R/A SLDR

Part	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Mounting Type	Contact Material	Dielectric Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Connector Style	Contact Type	Flange Feature	Termination	Color	Number of Rows	Material Flammability Rating	Shell Material, Finish	Voltage Rating	Features	Number of Positions
TE Connectivity AMP Connectors 787928-7	3.71 mm	0.146 in	0.05	0.1	Board Edge, Right Angle, Through Hole	Phosphor Bronze	Thermoplastic	Receptacle, Female Sockets	105 ░C	-55 °C	Gold	D-Type	Signal	Housing/Shell (4-40)	Solder	Black	2	UL94 V-0	Nickel Plated, Steel	30 VDC	Board Lock, Shielded	68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	448	$ 16.74

General part information

68 Position D-Type Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
