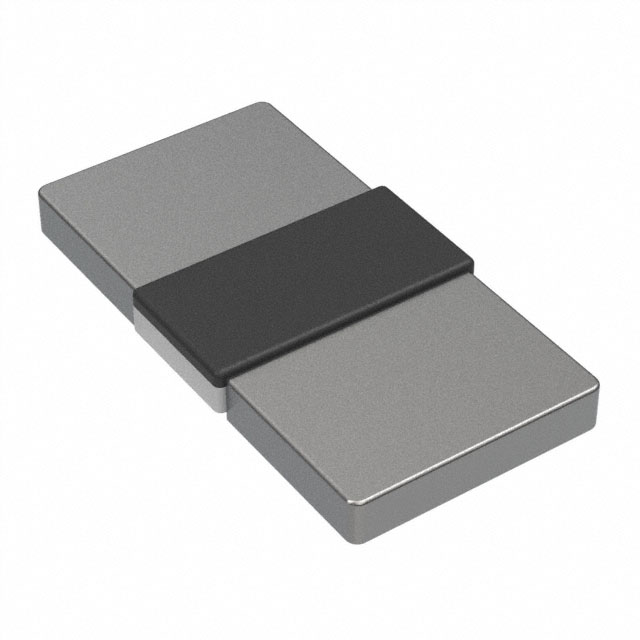

VSML3923S9-0M50F

Active

Delta Electronics/Cyntec

RES 500 UOHM 1% 9W NONSTANDARD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

RES 500 UOHM 1% 9W NONSTANDARD

Technical Specifications

Parameters and characteristics for this part

Specification	VSML3923S9-0M50F

Composition	Thick Film
Features	Current Sense, Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max) [Max] [z]	0.049 "
Height - Seated (Max) [Max] [z]	1.25 mm
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-65 ░C
Package / Case	Nonstandard
Power (Watts)	9 W
Ratings	AEC-Q200
Resistance	0.5 mOhms
Size / Dimension [x]	10 mm
Size / Dimension [x]	0.394 "
Size / Dimension [y]	0.226 in
Size / Dimension [y]	5.75 mm
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

RES 500 UOHM 1% 9W NONSTANDARD

Part	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Composition	Resistance	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Ratings	Features
Delta Electronics/Cyntec VSML3923S9-0M50F	75 ppm/°C	10 mm	0.394 "	0.226 in	5.75 mm	9 W	Thick Film	0.5 mOhms	2	0.049 "	1.25 mm	170 °C	-65 ░C	Nonstandard	1 %	AEC-Q200	Automotive AEC-Q200, Current Sense, Pulse Withstanding

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.5 mOhms ±1% 9W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
