PE-W10CR002
ActivePasternack

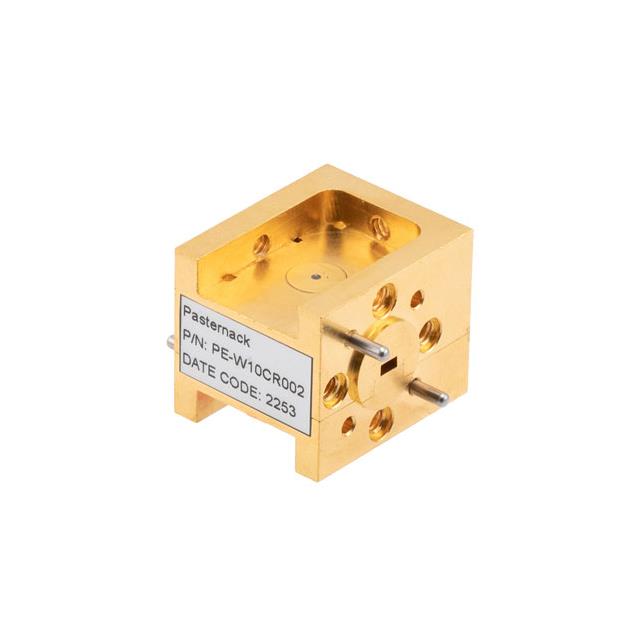

WR-10 WAVEGUIDE CIRCULATOR, 92 G
PE-W10CR002
ActivePasternack
WR-10 WAVEGUIDE CIRCULATOR, 92 G
Description
General part information
PE-W10CR002
WR-10 WAVEGUIDE CIRCULATOR, 92 G
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-W10CR002 |
|---|---|
| Frequency (Max) | 94 GHz |
| Frequency (Min) | 92 GHz |
| Insertion Loss | 1 dB |
| Isolation (Min) | 15 dB |
| Package / Case | Module |
| Power - Average Forward | 500 mW |
| Type | Circulator |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
