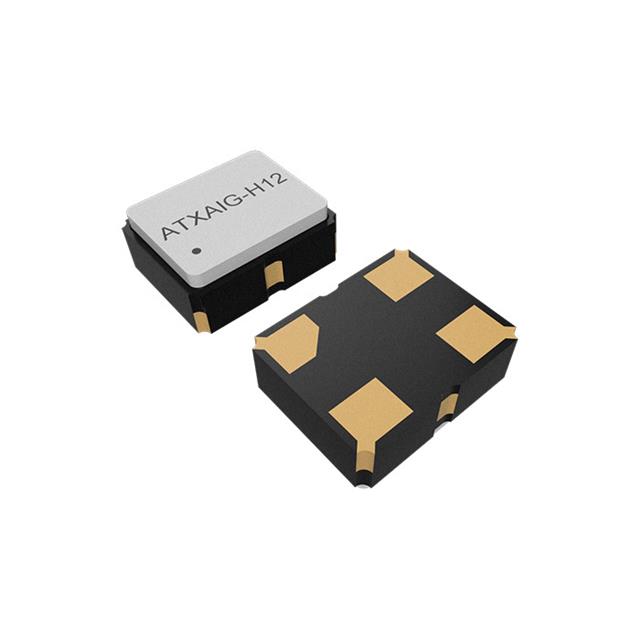

ATXAIG-H12-F-50.000MHZ-F25
ActiveAbracon LLC
XTAL OSC TCXO 40 MHZ CMOS SMD
ATXAIG-H12-F-50.000MHZ-F25
ActiveAbracon LLC
XTAL OSC TCXO 40 MHZ CMOS SMD
Description
General part information
ATXAIG-H12-F-50.000MHZ-F25
50 MHz TCXO CMOS Oscillator 1.68V ~ 3.63V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ATXAIG-H12-F-50.000MHZ-F25 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 50 MHz |
| Frequency Stability | 2.5 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.68 V |
