1899113
ActivePhoenix Contact
TERM BLK HEADER 15POS GREEN
1899113
ActivePhoenix Contact
TERM BLK HEADER 15POS GREEN
Description
General part information
1899113

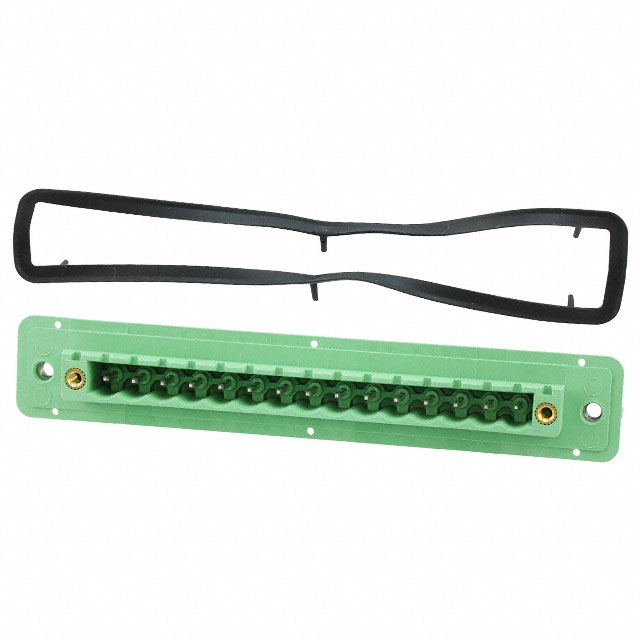

15 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1899113 |
|---|---|
| Color | Green |
| Current - UL | 10 A |
| Features | Threaded Mate Lock, Sealing Gasket |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Rear Flange |
| Pitch | 5.08 mm |
| Positions Per Level | 15 |
| Rear Panel Wire Connection | PCB Pins - Right Angle |
| Voltage - UL | 300 V |
| Width | 4.172 in |
