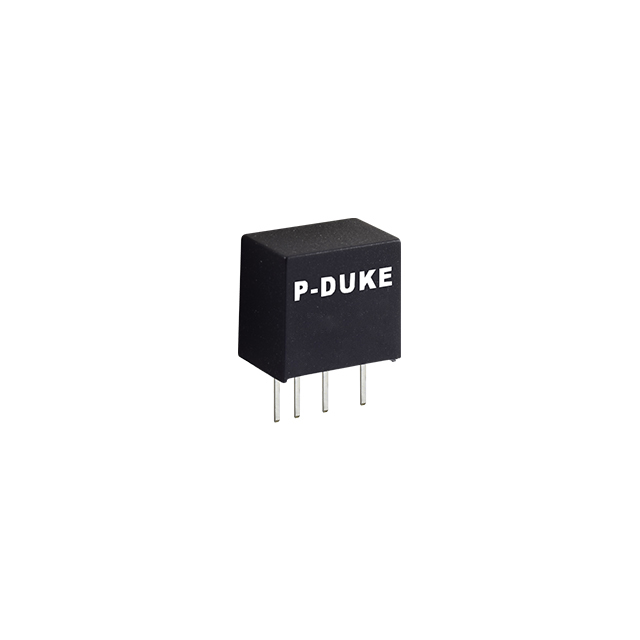

UDH02-24S05

Active

P-DUKE Technology

DC DC CONVERTER 5V 2W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 5V 2W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 2W

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Voltage - Output 1	Number of Outputs	Type	Efficiency	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation
P-DUKE Technology UDH02-24S05	Through Hole	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	ITE (Commercial)	5 V	1	Isolated Module	78 %	2 W	400 mA	-40 °C	105 C	CE	18 V	36 V	5-SIP Module, 4 Leads	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 400mA 18V - 36V Input
