MAXQ7667EVKIT-1#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX7667
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXQ7667EVKIT-1#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVAL FOR MAX7667
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXQ7667EVKIT-1# | MAXQ7667 Series |
|---|---|---|
| - | - | |
| Connectivity | - | LINbus, UART/USART, SPI |
| Core Size | - | 16-Bit |
| Data Converters | - | 12 b |
| Data Converters | - | 5 |
| Embedded | 16-Bit, MCU | 16-Bit, MCU |
| Embedded | True | True |
| Grade | - | Automotive |
| Interface | UART, JTAG, LIN | UART, JTAG, LIN |
| Mounting Type | - | Surface Mount |
| Number of I/O | - | 16 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 °C |
| Oscillator Type | - | Internal |
| Package / Case | - | 48-LQFP |
| Program Memory Size | - | 32 KB |
| Program Memory Type | - | FLASH |
| Qualification | - | AEC-Q100 |
| RAM Size | - | 2 K |
| Sensor Type | Ultrasonic Distance Measurement | Ultrasonic Distance Measurement |
| Speed | - | 16 MHz |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-LQFP (7x7) |
| Utilized IC / Part | MAXQ7667 | MAXQ7667 |
| Voltage - Supply | - | 5.5 V |
| Voltage - Supply | - | 2.25 V |
| Voltage - Supply (Vcc/Vdd) | - | 2.25 V |
| Voltage - Supply (Vcc/Vdd) | - | 2.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 89.95 | |
MAXQ7667 Series
IC MCU 16BIT 32KB FLASH 48LQFP
| Part | Program Memory Type | Connectivity | Number of I/O | Supplier Device Package | Mounting Type | RAM Size | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Data Converters [custom] | Data Converters [custom] | Core Size | Speed | Program Memory Size | Oscillator Type | Qualification | Grade | Embedded | Embedded | Interface | Utilized IC / Part | Sensor Type | Supplied Contents | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXQ7667AACM+T | FLASH | LINbus, SPI, UART/USART | 16 | 48-LQFP (7x7) | Surface Mount | 2 K | -40 °C | 125 °C | 48-LQFP | 2.25 V | 2.75 V | 12 b | 5 | 16-Bit | 16 MHz | 32 KB | Internal | ||||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667AACM/V+ | FLASH | LINbus, SPI, UART/USART | 16 | 48-LQFP (7x7) | Surface Mount | 2 K | -40 °C | 125 °C | 48-LQFP | 2.25 V | 2.75 V | 12 b | 5 | 16-Bit | 16 MHz | 32 KB | Internal | AEC-Q100 | Automotive | ||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667EVKIT-1# | 16-Bit, MCU | JTAG, LIN, UART | MAXQ7667 | Ultrasonic Distance Measurement | Board(s) | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667AACM/V+T | |||||||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667EVKIT+ | 16-Bit, MCU | JTAG, LIN, UART | MAXQ7667 | Ultrasonic Distance Measurement | Board(s) | 5.5 V | 2.25 V | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667AACM/V+GB | FLASH | LINbus, SPI, UART/USART | 16 | 48-LQFP (7x7) | Surface Mount | 2 K | -40 °C | 125 °C | 48-LQFP | 2.25 V | 2.75 V | 12 b | 5 | 16-Bit | 16 MHz | 32 KB | Internal | AEC-Q100 | Automotive | ||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667AACM/V+T | FLASH | LINbus, SPI, UART/USART | 16 | 48-LQFP (7x7) | Surface Mount | 2 K | -40 °C | 125 °C | 48-LQFP | 2.25 V | 2.75 V | 12 b | 5 | 16-Bit | 16 MHz | 32 KB | Internal | AEC-Q100 | Automotive | ||||||||
Analog Devices Inc./Maxim Integrated MAXQ7667AACM+ | FLASH | LINbus, SPI, UART/USART | 16 | 48-LQFP (7x7) | Surface Mount | 2 K | -40 °C | 125 °C | 48-LQFP | 2.25 V | 2.75 V | 12 b | 5 | 16-Bit | 16 MHz | 32 KB | Internal |
Description
General part information
MAXQ7667 Series

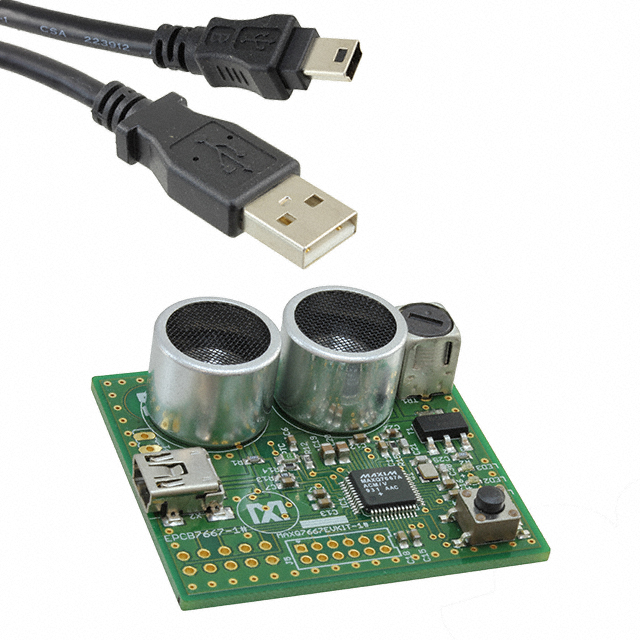

MAXQ7667 MAXQ® Ultrasonic Distance Measurement Sensor Evaluation Board
